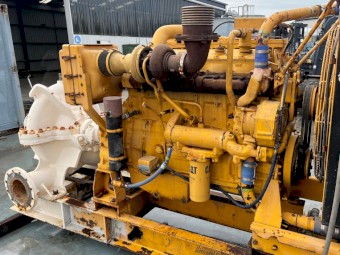

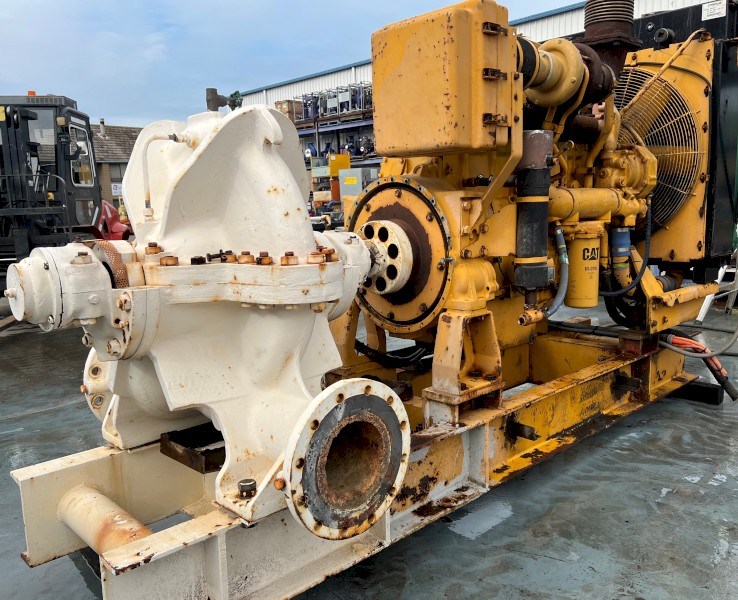

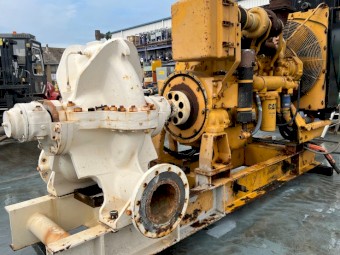

Caterpillar 3406 Diesel Powered Pump Water Pump Firepump TBJ 10"x8"-21" CHH

$25,400.00 + GST($27,940.00 Inc. GST)

Share listing via SMS


Quantity : 1 Unit
Unit Price : $25,400.00 + GST  ($27,940.00 Inc. GST)
Status : For Sale
Location : Williamstown, Central, VIC
Category : Machinery & Equipment, Pumps
Listing Date : 20/05/2022, 03:13pm


For sale diesel-powered pumpset. Caterpillar 3406 Water Pump Firepump.
Can also be used for irrigation or water transfer.
The pump was operational when decommissioned several years ago when it was a stand-by firepump. Sold "as is".
Hour meter shown 132 hours.

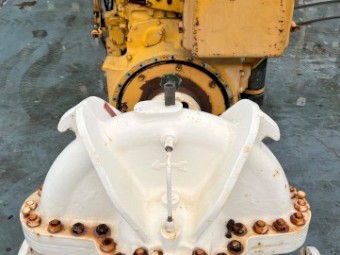

Pump Particulars:
* Thompsons Byron Jackson 10" x 8" Impeller CHH series
* Serial number: 78-SM-02-02.
* Size: 250mm inlet / 200mm outlet
* Flange pattern: Table E.
* Materials: Cast Iron casing and Bronze impellor.
* Original Rated flow: 128.8 lt/sec at 91.4 m head at 1480 RPM.
* Maximum duty: 147 lt/sec at 121 m at 1700 rpm.
* Maximum Head: 125 m at 1700 rpm.

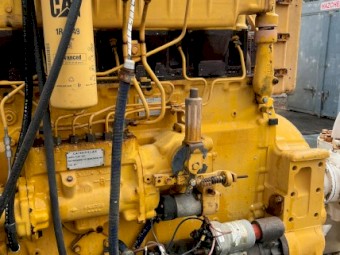

Engine Particulars:
* Serial number: 90U6033.
* Make: Caterpillar 3406 PC (14.6 lt engine).
* Aspiration: turbo charged / after cooled
* Bore x Stroke: 137.2 x 165.1 mm (5.4 x 6.5 inch)
* Rated Power: 333 HP ( 248 kW) at 2085 RPM.
* Dry weight: approx 1500 kg (excludes base and radiator).
* Arrangement: 4N4238
* Radiator cooled
* Includes: Skid base and loose battery trays.

Notes pertaining to Farm Tender website terms of trade:
* there is no manual available for this item;
* there are no maintenance and service records available for this item;
* the buyer is responsible for assessing the risks of transport, installation & usage of the listed item.
* inspections are Welcome at our Williamstown Factory (Vic 3016).
* we will be glad to answer any questions about this item.
