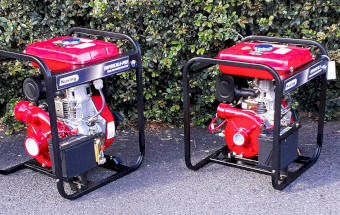

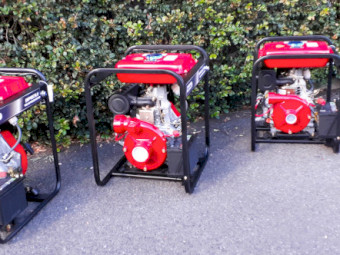

High Volume Cast Iron Diesel Water Pumps - From $950

Condition: New

Wellku Power currently stock a number of different types of water transfer pumps.
The most popular being the High Volume cast iron pumps made for providing extra
volume and pressure over those longer distances. Each model has an electric start
including 12V battery and a 12 litre diesel fuel tank. Our range in this style of pump
consists of 2 inch, 3 inch & 4 inch with stainless steel & galvanized fittings available
as added extras.
All pricing includes GST.
Shipping available with warehouse collections welcome

FEATURES:

Award winning high quality 4 stroke direct injection diesel engine.
High-quality cast-iron pump and heavy duty mechanical seal.
Electric & Recoil start includes 12V battery
Decompression lever
12 litre fuel tank
Can be used for multiple applications
12 Months warranty on all diesel pumps with spare parts available.

SPECIFICATIONS:

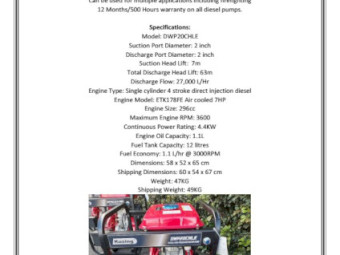

2 Inch Diesel High-Volume Cast-Iron Water Pump
RRP $950
Stainless Steel Fittings Optional RRP $6.60 each

Model: DWP20CHLE
Suction Port Diameter: 2 inch
Discharge Port Diameter: 2 inch
Suction Head Lift: 7m
Total Discharge Head Lift: 63m
Discharge Flow: 27,000 L/Hr
Engine Type: Single cylinder 4 stroke direct injection diesel
Engine Model: ETK178FE Air cooled 7HP
Engine Size: 296cc
Maximum Engine RPM: 3600
Continuous Power Rating: 4.4KW
Engine Oil Capacity: 1.1L
Fuel Tank Capacity: 12 litres
Fuel Economy: 1.1 L/hr @ 3000RPM
Dimensions: 58 x 52 x 65 cm
Shipping Dimensions: 60 x 54 x 67 cm
Weight: 47KG
Shipping Weight: 49KG


3 Inch Pro Diesel High Volume Cast-Iron Water Pump
RRP $1350
Galvanized Fittings Optional RRP $26.00 each

Model: DWP30CHLE-PRO
Suction Port Diameter: 3 inch
Discharge Port Diameter: 3 inch
Suction Head Lift: 5 metres
Total Discharge Head Lift: 66 metres
Discharge Flow: 38 m3/hr
Engine Type: Single cylinder 4 stroke direct injection diesel
Engine Model: ETK192FE Air cooled 18HP
Engine Size: 498cc
Engine Maximum RPM: 3600
Continuous Power Rating: 6.6KW
Engine Oil Capacity: 1.65 litres
Fuel Tank Capacity: 12 litres
Fuel Economy: 1.2 L/hr @ 3000RPM
Dimensions: 62L x 54W x 72H cm
Shipping Dimensions: 64L x 56W x 74H cm
Weight: 77kg
Shipping Weight: 80kg


4 Inch Pro Diesel High Volume Cast-Iron Water Pump
RRP $1990
Galvanized Fittings Optional RRP $66.00 each

(The 4" Pro is the replacement for the discontinued 4 inch 18HP model)

Model: DWP40CHLE-PRO
Suction Port Diameter: 4 inch
Discharge Port Diameter: 4 inch
Impeller Diameter 150mm
Suction Head Lift: 5m
Total Discharge Head Lift: 45m
Discharge Flow: 120 m3/h
Engine Type: Single cylinder 4 stroke direct injection diesel
Engine Model: 1102FE Air cooled 22HP
Engine Size: 694cc
Maximum Engine RPM: 3600
Continuous Power Rating: 10.5KW
Engine Oil Capacity: 1.8L
Fuel Tank Capacity: 12 litres
Fuel Economy: 1.2 L/hr @ 3000RPM
Dimensions: 99 x 66 x 90 cm (handles attached)
Shipping Dimensions: 67 x 57 x 81 cm
Weight: 87KG
Shipping Weight: 91KG
