Brand New Submersible Hybrid Pump | 6.6m³ Max Flow | Max Head 105m | 2.2kW Pump Drive with Solar | Solar Workhorse Series 4SPM5-17

The 4SPM5-17 submersible AC pump package is coupled with a powerful VFD based solar pump inverter, giving the benefits of solar, as well as mains and generator capabilities. This means the pump can run all day from solar and automatically switch to mains or generator power at night and can even be setup to auto switch, as well as blend the solar with AC power when there is insufficient sunlight.

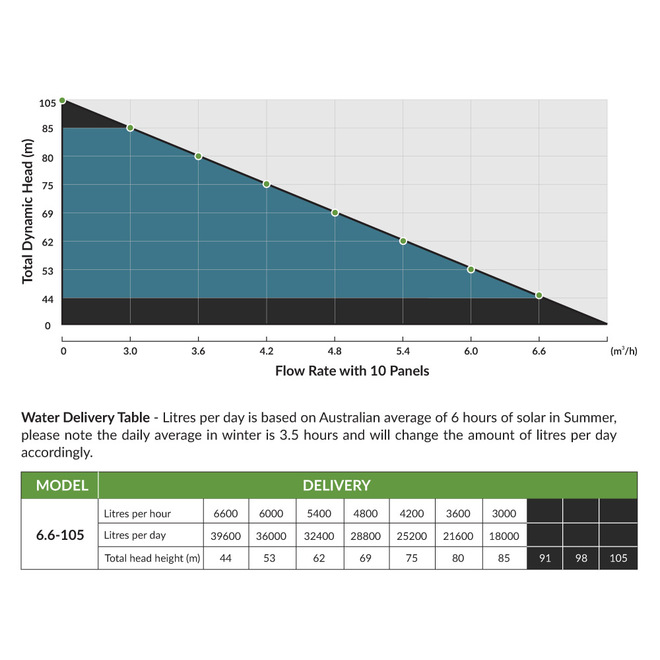

It has a capability of 6600l/hr and a maximum head of 108m, to work out exactly how much water you'll get, be sure to check the flow at your total head height in the flow chart.

Pump Model 4SPM5-17 Specs:
* Single Phase 240v AC 50Hz
* Max Flow Rate: 6.6m³/hr or 6,600 litres per hour (at minimum head height)
* Max Head Height: 105m (where flow stops - see above images for head and flow ranges)
* Minimum head height* at 50Hz: 44m
* Unit Weight: 18kg plus cable weight approx 30kg
* Motor and Pump body High quality stainless steel 304

Solar Pump Drive Range Features:
* Dual operating modes
* Solar only mode – Automatic operation with sunlight, adjusting flow to match available solar power.
* 24/7 operation mode – power with Solar during the day & run with Mains overnight, the inverter will also blend mains power with
solar if solar is not sufficient to run the pump at required speed.
* Maximum Solar Array Open Circuit Voltage (VOC): 450V
* Mains / Generator Input: Single Phase AC 240V (Optional Generator auto start controller available for $495)
* Full protections and automatic operation including low water protection (both low current and water level sensors), compatible
with pressure switches and tank level sensors
* LCD display screen with running status and info, including power input/ output, frequency/ speed, and error history.
* Overload / Stalled motor protection

Package includes:
* AC Submersible Multistage Pump model 4SP5-17 with 50m submersible power cable fitted
* Solar Pump Inverter drive  with AC Back up
* Solar Array 2.7kW - 10 x 270w A grade CEC approved Solar panels
* 10m Solar Cable with Connectors fitted
* Solar DC isolator
* Instruction Manual and Quick Connection guide

Workhorse Pumps come with a 2 year warranty.  The Pump Drive comes with a 2 year warranty. If your item is found to be defective within the warranty period we will replace the defective part free of charge. You are welcome to send it back and our factory trained staff will carry out the repair for you free of charge within the warranty period. Repairs outside warranty period available at reasonable cost, shipping is cost of buyer. Consumables, cables, leads, etc.. are not covered by warranty, negligence or misuse is a warranty exclusion. Commodore is not responsible for any direct or indirect expenses or losses related to warranty or non warranty.
