Farm Tender

SUB PUMP 18M3 | MAX HEAD 124M | 7.5KW PUMP DRIVE & SOLAR

$4,580.00 + GST ($5,038.00 Inc. GST)

  • Closed
Share listing via SMS Send Enquiry

Details

Quantity : 1 Unit
Unit Price : $4,580.00 + GST  ($5,038.00 Inc. GST)
Status : For Sale
Location : Wodonga, Northeast, VIC
Category : Machinery & Equipment, Pumps
Listing Date : 27/02/2020, 10:56am

Description

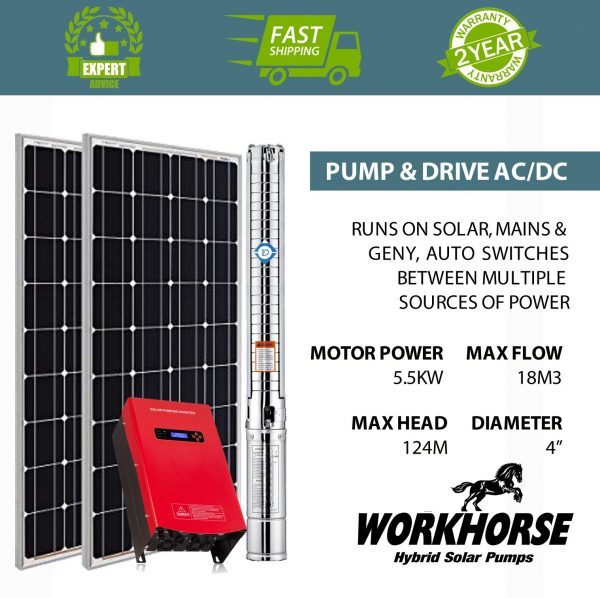

SUBMERSIBLE HYBRID PUMP 18M3 | MAX HEAD 124M | 7.5KW PUMP DRIVE WITH SOLAR | SOLAR WORKHORSE SERIES 4SP14-18

fom $4580 to $16,405 (less rebates)

Commodore is excited to welcome the Workhorse range of Hybrid Solar pumps. Our strongest range of Hybrid Solar pumps. The 4SP14-18 submersible three phase 380v AC pump package is coupled with a powerful VFD based solar pump inverter, giving the benefits of solar, as well as mains and generator capabilities, meaning the pump can run all day from solar, and automatically switch to mains or generator power at night and can even auto switch and blend the solar with AC power when there is insufficient sunlight. It has a capability of 18,000l/hr and a maximum head of 124m. To work out exactly how much water you’ll get, be sure to check the flow at your total head height in the flow chart.


Pump Model 4SP14-18 Specs:

Three Phase 380-415v AC 50Hz

5.5kW/7.5HP

Max Flow Rate: 18m3/hr or 18,000 litres per hour (at minimum head height)

Max Head Height: 124m (where flow stops – see above images for head and flow ranges)

Minimum head height* at 50Hz: 41m (can be reduced if ran at lower speed)

Unit Weight: 36.5kG

Motor and Pump body High quality stainless steel 304

diameter: 4″

Solar Pump Drive Range Features:

Dual operating modes:

Solar only mode – Automatic operation with sunlight, adjusting flow to match available solar power.

24/7 operation mode – power with Solar during the day & run with Mains overnight, the inverter will also blend mains power with solar if solar is not sufficient to run the pump at required speed.

Maximum Solar Array Open Circuit Voltage (VOC): 900V

Mains / Generator Input: Three Phase AC 380-415V (Optional Generator auto start controller available for $495)

Full protections and automatic operation including low water protection (both low current and water level sensors), compatible with pressure switches and tank level sensors

LCD display screen with running status and info, including power input / output, frequency / speed, and error history.

Overload / Stalled motor protection

Package includes:

AC Submersible Multistage Pump model 4SP14-18

Solar Pump Inverter drive with AC Back up

10.26kW Solar Array consisting of 34 x 278w solar panels (optional).

10m Solar Cable with Connectors fitted

Solar DC isolator

Instruction Manual and Quick Connection guide

Optional Extras:

Railing/connectors take all the hard work out of building your own stand, they connect to the solar panels and bolt straight onto your own stand, they are also designed to be screwed onto a corrugated iron roof. See data sheet in ‘Data sheets’ tab above.

Solar panel stand. Using Clenergy ST3 Ground mount. See data sheet in ‘Data sheets’ tab above.

Pressure switch, required if you are filling a tank that is some distance from where you’re pumping from and want the pump to turn on and off automatically. This eliminates the need to run a wire to the tank for automatic operation.

Links to more info..


https://www.commodoreaustralia.com.au/product/submersible-hybrid-pump-18m3-max-head-124m-7-5kw-pump-drive-with-solar-solar-workhorse-series-4sp14-18/

https://www.commodoreaustralia.com.au/solar-powers-water-delivery-nev-mackrell/
