Farm Tender

Solarize your costly mains pumps, BYO pump or use ours, 3 phase or single phase

$2,990.00 + GST ($3,289.00 Inc. GST)

  • Closed
Share listing via SMS Send Enquiry

Details

Quantity : 1 Unit
Unit Price : $2,990.00 + GST  ($3,289.00 Inc. GST)
Status : For Sale
Location : Shepparton, Northern Country, VIC
Category : Machinery & Equipment, Pumps
Listing Date : 03/03/2020, 05:19am

Description

Heres an example

https://www.commodoreaustralia.com.au/product/submersible-workhorse-ac-pump-6-6m3-hr-max-flow-108m-head/

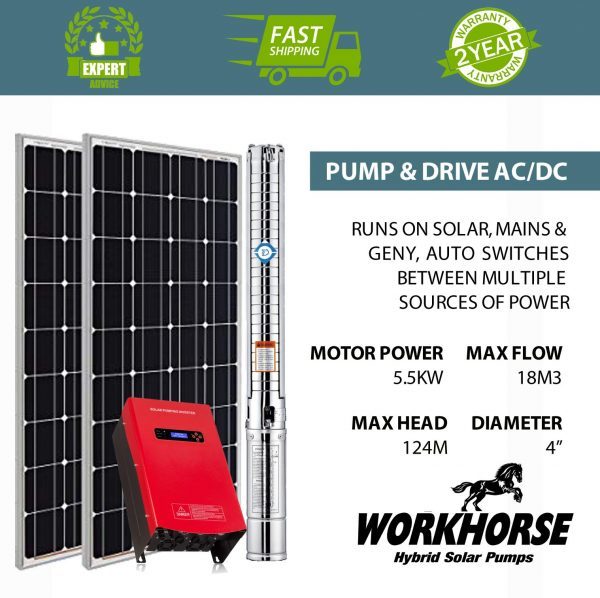

Commodore is excited to welcome the Workhorse range of Hybrid Solar pumps. Our strongest range of Hybrid Solar pumps. The 4SPM5-17 submersible AC pump package is coupled with a powerful VFD based solar pump inverter, giving the benefits of solar, as well as mains and generator capabilities, meaning the pump can run all day from solar, and automatically switch to mains or generator power, and can even auto switch and blend the solar with AC power when there is insufficient sunlight. It has a capability of 6600l/hr and a maximum head of 108m, to work out exactly how much water you’ll get, be sure to check the flow at your total head height in the flow chart.

Pump Model 4SPM5-17 Specs:

Single Phase 240v AC 50Hz
Max Flow Rate: 6.6m3/hr or 6,600 litres per hour (at minimum head height)
Max Head Height: 105m (where flow stops – see above images for head and flow ranges)
Minimum head height* at 50Hz: 44m
Unit Weight: 18kg plus cable weight approx 30kg
Motor and Pump body High quality stainless steel 304
Solar Pump Drive Range Features:

Dual operating modes:
Solar only mode – Automatic operation with sunlight, adjusting flow to match available solar power.
24/7 operation mode – power with Solar during the day & run with Mains overnight, the inverter will also blend mains power with solar if solar is not sufficient to run the pump at required speed.
Maximum Solar Array Open Circuit Voltage (VOC): 450V
Mains / Generator Input: Single Phase AC 240V (Optional Generator auto start controller available for $495)
Full protections and automatic operation including low water protection (both low current and water level sensors), compatible with pressure switches and tank level sensors
LCD display screen with running status and info, including power input/ output, frequency/ speed, and error history.
Overload / Stalled motor protection
Package includes:

AC Submersible Multistage Pump model 4SP5-17 with 50m submersible power cable fitted
Solar Pump Inverter drive with AC Back up
Solar Array 2.7kW (10x 270w A grade CEC approved Solar panels) Select from dropdown menu
10m Solar Cable with Connectors fitted
Solar DC isolator
Instruction Manual and Quick Connection guide
Optional Extras:

Railing/connectors take all the hard work out of building your own stand, they connect to the solar panels and bolt straight onto your own stand, they are also designed to be screwed onto a corrugated iron roof. See data sheet in ‘Data sheets’ tab above.
Solar panel stand. Using Clenergy ST3 Ground mount. See data sheet in ‘Data sheets’ tab above.
Pressure switch, required if you are filling a tank that is some distance from where you’re pumping from and want the pump to turn on and off automatically. This eliminates the need to run a wire to the tank for automatic operation.
*If necessary, the flow rate and minimum head height can be reduced by reducing the max running frequency from the solar pump drive to slow the motor RPM. The VFD based design of the pump inverter also reduces the start-up power for those on limited power supplies or off-grid systems, meaning smaller sized generators can be used to power the pump directly if solar is not available. Please contact us for more info.
