MSL 889 - AJAX CENTRIFUGAL PUMP SET 2KS, SERIES 10143T WITH ELECTRICAL MOTOR FITTED ON A STEEL BASE

Condition: Used

MSL 889
BARGAIN OFFER WITH NEW REDUCED PRICE TO SELL
AJAX CENTRIFUGAL PUMP SET 2KS, SERIES 10143T WITH ELECTRICAL MOTOR FITTED ON A STEEL BASE
ADDITIONAL DETAILS:
• COMPLETE ELECTRICAL MOTOR - PUMP SET WITH 6.6” IMPELLER FITTED ONTO A METAL BASE
• DIRECTLY COUPLED VIA FLEXIBLE COUPLING
• PUMP PERFORMANCE: 100 GAL/Min @ 11 m HEAD (64.5% EFFICIENCY)
• TECO ELECTRIC MOTOR D90S, HB 2303 1132; 1410 RPM, 4.7A / 2.7 A, 220/250 - 380 / 440 V
• METAL BASE APPROX. DIMENSIONS:
 LENGTH 670 mm
 WIDTH 230 mm
 HEIGHT 75 mm
• BASE MATERIAL: U CHANNEL, 10 mm THICK; BASE HAS 4 MOUNTING FLATS FOR MOUNTING TO ` CONCRETE FOUNDATION WITH OPENING HOLES FOR 10 mm DYNABOLTS
• SUCTION SIDE - FITTED WITH 2`` GALVANIZED FITTINGS:
 ELBOW, NIPPLE AND FLANGE WITH 4 BOLTS, NUTS AND WASHERS
• DELIVERY SIDE: FITTED WITH 2`` GALVANIZED FITTINGS:
 ELBOW, NIPPLE AND FLANGE WITH 4 BOLTS, NUTS AND WASHERS
 TEE / NIPPLE WITH CAP
• SECOND HAND UNIT (MSL 889)

PHOTOGRAPHS:

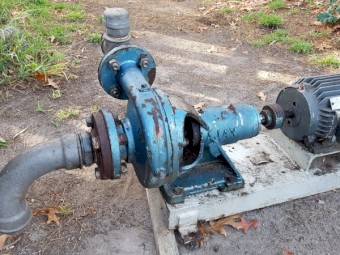

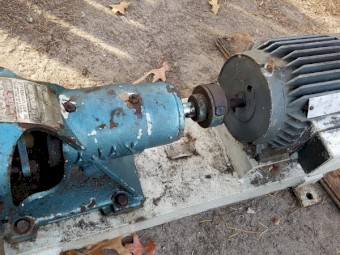

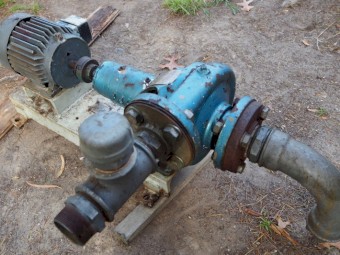

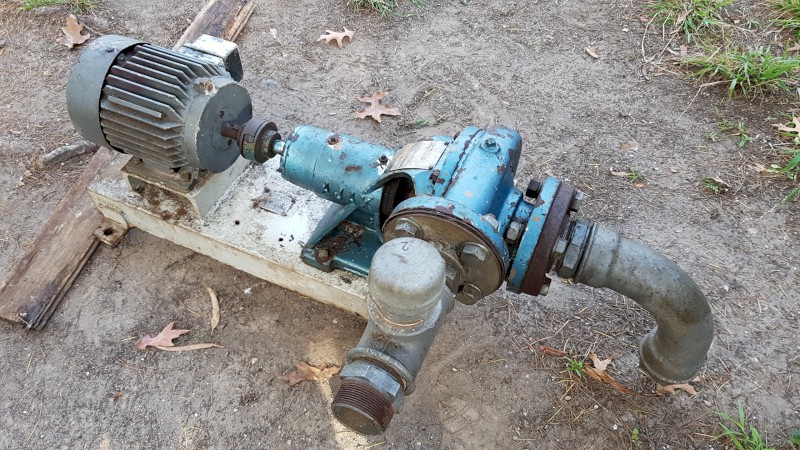

MSL 889.1 - MSL 889.4 4 Photographs


DOCUMENT REFERENCES:
The following listed documentation is available on request.
• Document 10902 – 18.04.20218 – AJAX MLK Pumps – Performance Curves 1 Page
• Document 10903 – 18.04.20218 – AJAX MLK Pumps – Specification 1 Page
• Document 10905 – 18.04.20218 – AJAX MLK Pumps – Pump Dimensions 1 Page
• Document 10906 – 18.04.20218 – AJAX MLK Pumps – Parts List & Material details 1 Page
• Document 10907 – 18.04.20218 – AJAX MLK Pumps – Data Sheet Inc. Perf. Curves 5 Pages
• Document 10897 – 13.04.20218 – AJAX MLK Pumps – Dimensions & Performance Curves 4 Pages


Price: AUD 995.00 (Ex- Works Melbourne, Australia)
This item is surplus to our requirements and the price has been set for a quick sale. As a general comment the asking price is considered as a bargain, with indicative current replacement cost of identical specified and assembled Unit (Pump coupled with Electrical Motor and assembled on a Steel base, including fittings) will cost in excess of AUD 3,500.00.

Packing, Freight and Insurance:
At cost - TBA and quoted on receipt of purchaser's details, including his delivery address.
Will ship Australia wide.
