Kinghitter | Series 1i 400 Post Rammer + Terminator Base

Condition: New

Make: King Hitter

The Kinghitter Series 1i packs huge value and versatility, with Kinghitter’s leading design features fitted as standard for superior post driving control.

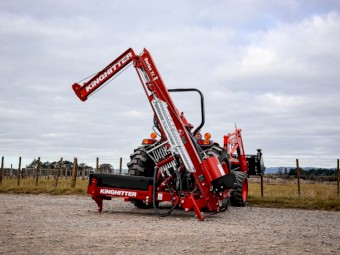

Featuring a 4.0m mast with an all-new hinge system, the Series 1i 400 provides the ability to hit harder and higher, with the flexibility of being able to lower the machine height for storage or transport. The new mast design keeps overall weight to a minimum, with the overall machine weight coming in at 535kg. This allows the Series 1i 400 to be used on smaller tractors (40 hp+)

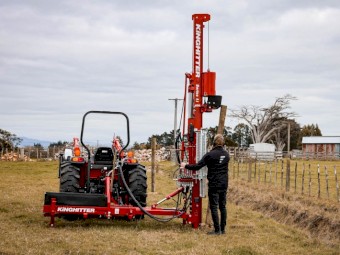

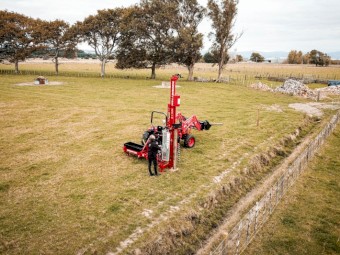

The Terminator Base included in the package mounts the post driver in a side-mounted position and provides a massive 950 mm of side shift. This lets the operator drive alongside the fence line and slide the post driver into line with a pull of the lever.
In this video, we take a closer look at how the Terminator Base transforms your post driver setup and saves serious time on the fence line:

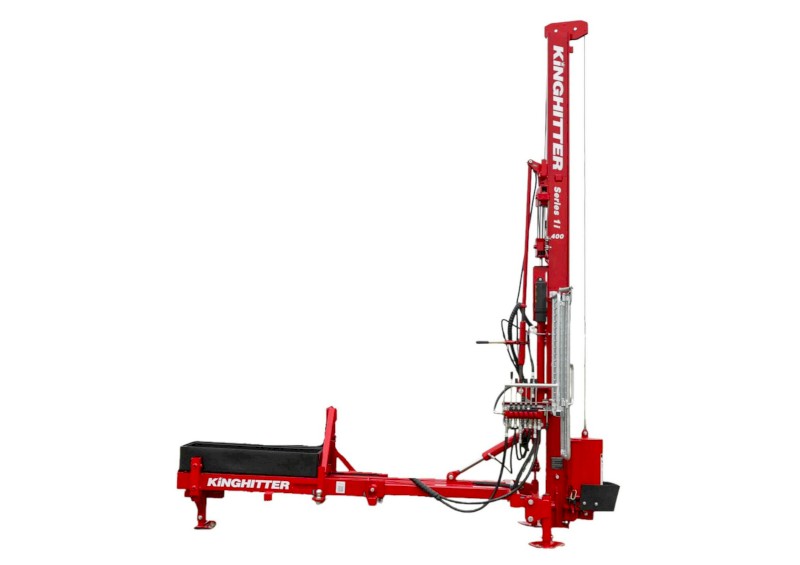

Like every machine in the Kinghitter range, the Series 1i 400 is built around logical, easy-to-use operation. At the heart of this hydraulic post rammer is a 4.0m hinged mast capable of reaching a post height of 3.1m (10ft 2"). This is available as a manual hinged or hydraulic hinged option. Paired with a 200kg (440lb) hammer, the Series 1i provides plenty of hitting power.
The hydraulically controlled 20° toplink tilt and 20° sidetilt tilt give you precise post placement, while the interchangeable safety post cap system secures the post upright against the mast, giving a single operator easy directional control of the post. Interchangeable post guides handle all common post types and sizes, and the Kinghitter active safety system keeps your day on the fenceline safe and efficient.
Fitted with Kinghitter’s Safety Post Cap, the operator has completely safe directional control of every post. Standard with the Active Safety System, this protects the operator from the strike zone of the hammer along its entire stroke to the ground. It also secures each post in an upright position while driving, allowing the operator to steer the post using the post driver controls positioned behind the safety gate.
Mast: 4.0m Manual Hinged Mast
Weight: 795kg
Max Post Height: 3.1m (10ft 2")
Post Steering: Safety Post Cap
Sidetilt Angle: 20° Left / Right
Toplink Angle: 20° Fore / Aft
Hammer: 200kg (440lb)
Safety: Active Safety System
Base: Terminator Base
- 950mm Side Shift
- Adjustable Nylon Slides
- Tool-holders
- Toolbox

*This package excludes any accessories that may be shown in some photos.
