$49,800.00 + GST ($54,780.00 Inc. GST)
Details
| Quantity | : | 1 Unit |
| Unit Price | : | $49,800.00 + GST ($54,780.00 Inc. GST) |
| Status | : | For Sale |
| Location | : | LAVERTON NORTH, South West, VIC |
| Category | : | Machinery & Equipment, Hay Rake |
| Listing Date | : | 07/04/2026, 01:27pm |
Description
Brilliantly simple concept, for low HP, low driving requirement in HP per metre. Plus a very gentle swathing, or merging action in very delicate and hard to rake, low moisture crops.
Finance or lease options available!
Raking action is achieved with special 20 mm Polyamide rods, these rods flex up and down to follow contour.

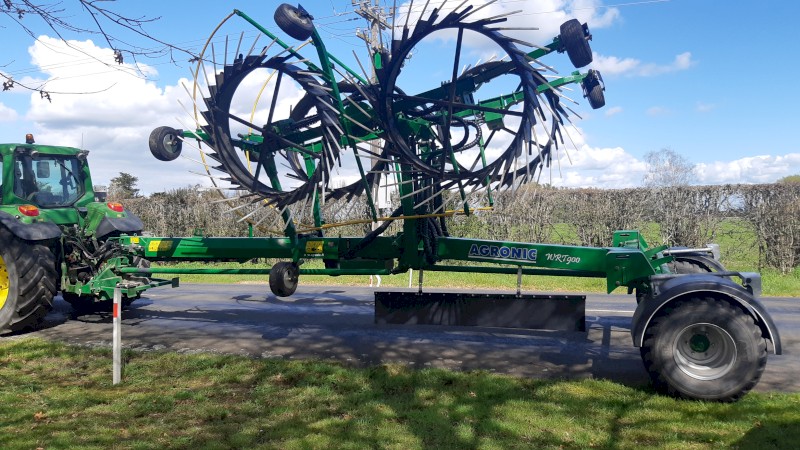

Weight 3.3T. Width adjustable from 7m right out to 9.25m, with both horizontal hydraulic adjustment of rotors, plus hydraulic angling of the V-shape of the rotor pairs.

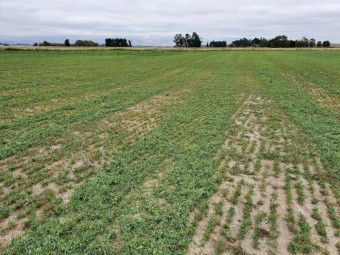

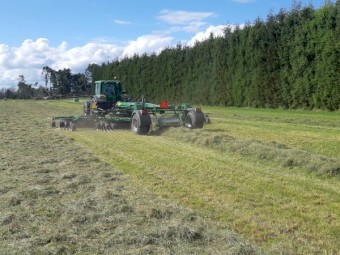

Please see images attached in grass silage & balage, cereal silage, lucerne, oaten hay and cereals balage. Action lifts first and then sweeps the crop into a row.
High driving speeds, whilst ensuring clean row sample with a minimal level of contamination, compared to rotary cam-track Rakes.
C/W Mechanical steering and self-contained hydraulics, with oil resevoir inside the front beam of the Rake. Can be operated with only 90 - 95 Hp. Comes with optional "Pro Pack" pre-select package of accessories, such as offset steering (With the main beam offset - to place the swath off to clear ground by as much as 60 cm when raking 3 x windrows together. See offset Raking images.
Hydraulic motors in series drive each side of the rake, with 52 L/Min per side powered via PTO drive to a pump pack. Driving hydro motors on each rotor is 500cc. A close-up pic is attached of the way the two motors are driven to the left / right side of the Rake.
Videos also are attached of Raking action.
