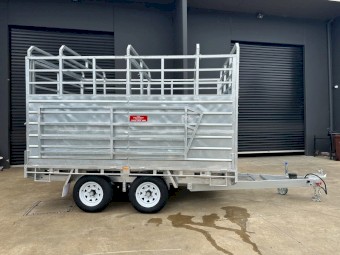

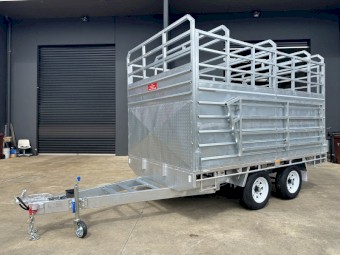

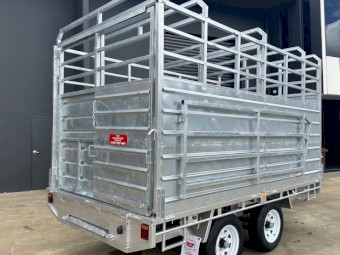

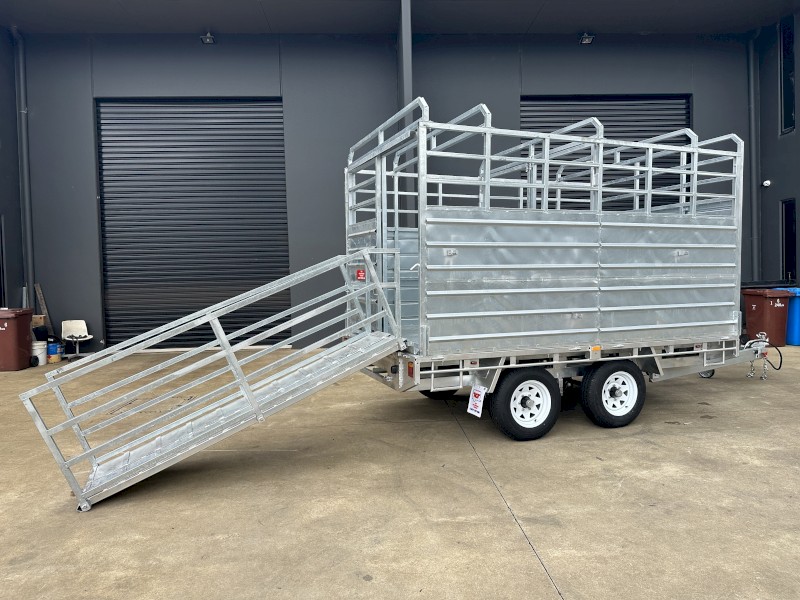

Livestock Trailer 12x7 Galvanised Cattle & Flat Top Trailer (2 in 1) with Ramps 2024

Condition: New

Livestock Trailer 12x7 Galvanised Cattle & Flat Top Trailer (2 in 1) with Ramps 3500kg ATM 2024

Approved and Certified under the Road Vehicle Standards Act (RVSA).
Every trailer component, ADR approved. Your trailer, built for safety and compliance.
Greasable Rocker Roller Suspension.
Please contact us for a delivery quotation to VIC, NSW, SA, TAS, ACT, Qld, WA.

Dimensions
• ATM: 3500 kg
• Tare: 1512 kg
• Loading Capacity: 1988 kg
• Exterior Length: 5680 mm
• Exterior Width: 2615 mm (excl. Jack Legs); 3209 mm (incl. Jack Legs)
• Internal Size: 3505 x 2130 x 1833 mm

Specifications
• Drawbar: 1900 mm; 150 x 50 x 5 mm RHS
• Coupling: 50 mm Quick Release Coupling 3500 kg
• Safety Chain: 13 mm ADR Standard Heavy Duty Chain
• Surface Finish: Hot Dipped Galvanised (Rust Free)
• Colour: Silver
• Lights: LED Tail Lights + Number Plate Light + Side Marker Lights
• Axle: 50 mm Round Solid 12" Dual Dexter Axle
• Jockey Wheel: 8” Swivel Heavy Duty 1500 lbs.
• Checker Plate: 2.5 mm
• Cage: Removable Crate Cage
• Suspension: 7 Leaf Rocker Roller Springs; Fully Welded Spring Hangers
• Wheel & Tyres: Brand New, 15” Sunraysia Rims Land Cruiser 6 Stud Pattern, 195/R15C Light Truck Tyres
• Break Away System: Hopkins Electric Break-Away Unit (Brakes Activate Upon Separation of Trailer from Tow Vehicle)
• Brakes: 12" Electric Drum on Four Wheels
• Jack Off Legs: Four Wind-up Jack Legs
• Ramps: 2.5 m Galvanised Multi-functional Ramps with Two Rails
• Warranty: 12 Months Structural

Optional Extras
• Spare Wheel
• Spare Wheel Holder
• Aluminium Toolbox 1200*400*360
• VIC 12 Months Registration


Features:
The aim of this versatile Livestock & Flat Top transformable Trailer is to offer the most useful and practical transportation solution for the livestock business. It is ideal for delivering small to medium-sized agricultural machinery and equipment as well as cattle. The livestock cage may be removed from the trailer's main body, allowing the trailer to quickly and easily change from a livestock trailer to a flat-top trailer whenever and wherever it is needed.

Finance and Payment Plan Available
We are working with many reputable lenders. We will do all the necessary work, saving you time and money. Please enquire now for more details.

ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSES ONLY. THE ACTUAL PRODUCT MAY NOT HAVE ALL THE EXTRA OPTIONS. PLEASE CHECK THE PRODUCT DESCRIPTION.
