Farm Tender

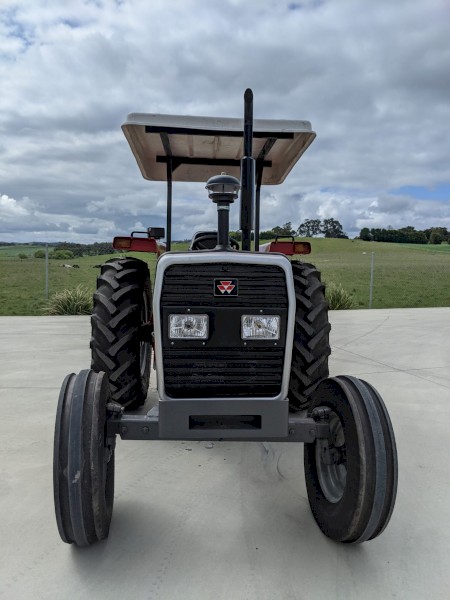

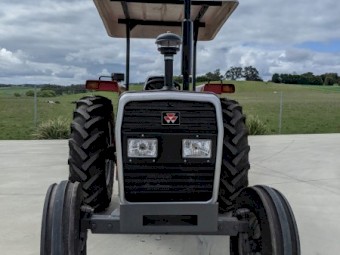

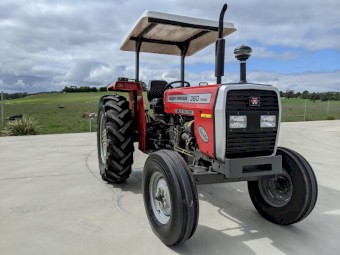

Massey Ferguson 360 60HP

$21,595.00 + GST($23,754.50 Inc. GST)

Share listing via SMS

Details

Quantity : 1 Unit
Unit Price : $21,595.00 + GST  ($23,754.50 Inc. GST)
Status : For Sale
Location : Kilmore, North Central, VIC
Category : Machinery & Equipment, Tractors
Listing Date : 01/11/2021, 12:45pm
  • Buy now  pay later   for agriculture

    Delaypay

    Want to know how it works?

  • Need Freight?Loadshift

  • truckit

Description

MF 360 Specifications
PERFORMANCE:
Maximum engine power @2,250 rpm 60 (B.S.) hp*
Maximum [email protected] 1,350 rpm 212 Nm
Maximum PTO power at rated engine 48 hp** speed
ENGINE:
Make/Type: Diesel / T3. 1524
No. of cylinders: 3
Injection: Direct
Bore: 91.4mm
Strock: 127.0 mm
Capacity: 2.5L
Compression ratio: 16.5 :1
Starting aid: Thermostart
Throttle control: Hand & foot
Cooling: Water
Air cleaner: Oil bath
Air pre-cleaner: Over bonnet, air swirl
Fuel filter: Dual, high capacity
Exhaust: Vertical
Oil Cooler: Water cooled
ELECTRONICS
Voltage: 12 V negative earth
Battery: 118Ah
Starter: 2.2kW
Alternator: 32Amp
CLUTCH
Type: Dual
Diameter: 305 x254 mm
POWER TAKE OFF
Type: Live
Engine speed at 540 PTO rpm: 1,789 rpm
Shaft diameter: 35 mm
No. of splines: 6
HYDRAULICS
Functions: Draft control, Position control, Response control, constant pumping
Pump Type: Reciprocating Ferguson
Maximum oil flow: 16L/min
Maximum pressure: 21 MPa at normal operating temperature
Max. lift capacity at lower links horizontal: 2,145 kgs
Lower Links: Cat. I &II with interchangeable balls
FRONT AXLE
Type: Box Section, Adjustable
STEERING
Steering: Hydrostatic
REAR AXLE AND BRAKES
Brake Type: Oil-immersed, multi-disc
Brake Actuation: Mechanical
Axle Type: Straddle axle with Epicyclic Reduction Unit
Parking brake Differential lock: Hand lever operated
Differential lock: Mechanical
INSTRUMENTATION

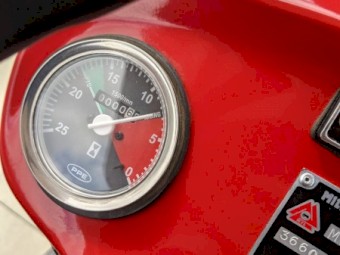

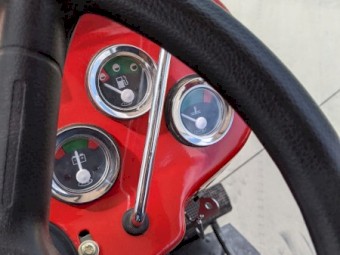

Gauges: Tachometer, Hour meter, Fuel level, Battery condition & Water temperature
Warning lights: Direction indicators, Electric charge, Headlight main beam, Low engine oil pressure, Brake lights & Auxiliary socket
TYRES
Front: 7.50 -16 (6PR)
Rear: 14.9 / 13 • 28 (6PR)
TRACK ADJUSTMENT
Front: 1,275 - 1,884 mm
Rear: 1,438 -2,125 mm
WEIGHTS AND DIMENSIONS(*) (With 7.50-16 front & 14.9 / 13-28 rear wheel and with full fuel, oil and water)
Gross Weight: 2,010 kg
Dimensions:
Wheel base: 2,032 mm
Overall length: 3,353 mm
Overall width (min): 1,890 mm
Height:
Over exhaust: 2,236 mm
Over steering wheel: 1,499 mm
Ground clearance Under gear box: 400 mm
CAPACITIES:
Fuel tank: 47.5L
Engine sump: 6.8L
Cooling system: 11.7L
Hydraulic system: 36L
Steering box: 2L
Oil bath air-cleaner: 0.5L
