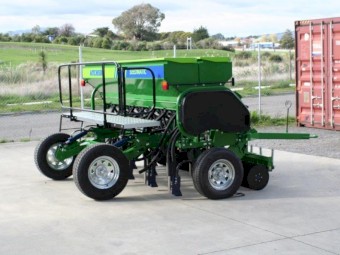

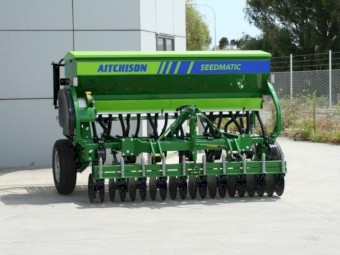

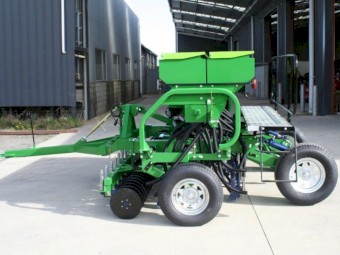

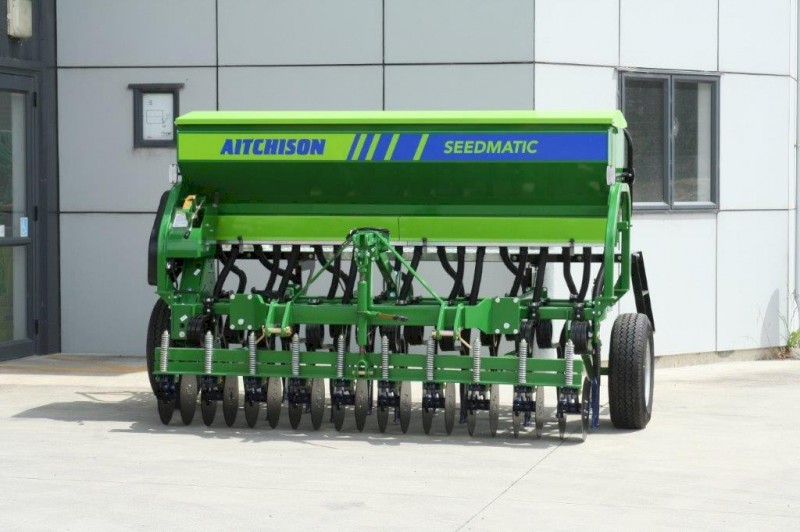

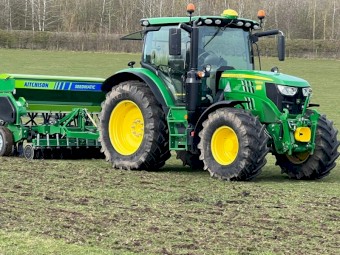

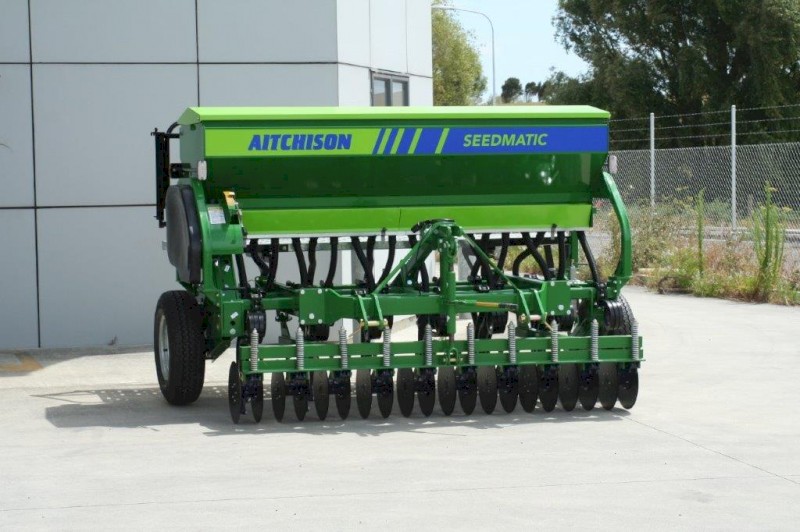

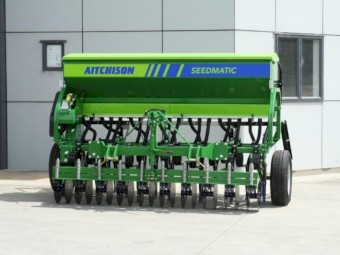

Aitchison® Seedmatic Tine Seed Drill

Condition: New

Make: Aitchison

Model: Seedmatic

The Aitchison® 4000 Series Seedmatic® is backed by over 50 years of trusted Aitchison® seeding innovation, and are built to deliver reliable, high-performance results across a wide range of conditions. These zero-tillage drills are ideal for sowing into existing pasture, cultivated ground, rocky soils, or heavy stubble such as maize.

The infinitely variable gearbox handles most seed volumes and sizes effortlessly, so whether you’re renovating paddocks, bulking up pasture, or establishing crops like clover, wheat, peas or canola, the Seedmatic® range gets the job done—consistently and efficiently. Models are available with or without fertiliser boxes, including the 4100 Series for those requiring integrated seed and fertiliser placement.

With tight 125mm (5”) row spacing and a 400mm stagger between rows, Seedmatic® drills are engineered for superior trash clearance and uniform emergence—helping you maximise yield while maintaining soil health.
At the heart of every Seedmatic® is Aitchison’s unique sponge seed distribution system.
• Accurate metering of fine and coarse seeds + selected fertilisers.
• Infinitely variable gearbox for rates from 1kg/ha to 350kg/ha
• Uniform seed delivery across all rows and terrain types
• Simple to calibrate and extremely reliable in the field
• Uniform seed delivery across all rows and terrain types

This system gives you full control over your sowing rates and ensures even emergence season after season. The Seedmatic® 4000 Tine Drills slimline tine design and robust frame are designed to perform in hard soils and established pastures without blocking.

The tine system:
• Vibrates to reduce drag and handle trash
• Penetrates hard soils and old pasture with ease
• Forms ideal conditions for seed-to-soil contact

Each tine is fitted with a slimline boot holder and tungsten-tipped Ni-hard inverted “T” boot, which creates a microclimate that supports fast germination and root development. With 25mm high-tensile vibrating tines, these drills clear trash, maintain depth, and minimise soil disturbance—all while promoting healthy organic matter in the soil profile.

Available Models:
4020C Seedmatic® Seed Drill
Overall width: 2.92 m (9’ 6”)
Sowing width: 2.50 m (8’ 2”)
Overall height: 1.81 m (5’ 11”)
Weight empty: 1280 kg / 2822 lb
Seed hopper capacity: 700 L (19.8 bu)
Number of rows: 20
Row spacing: 125 mm (5”)
Frame stagger: 410 mm

4024CT Seedmatic® Seed Drill (Seed Only or Seed & Fertilizer Model)
Overall width: 3.42 m (11’ 2”)
Sowing width: 3.0 m (9’ 8”)
Overall height: 1.81 m (5’ 11”)
Weight empty: 1730 kg / 3814 lb
Seed hopper capacity: 850 L (24.1 bu)
Number of rows: 24
Row spacing: 125 mm (5”)
Frame stagger: 410 mm
Transport kit (T): Included.

*Price shown is for a 4020C Seed Drill. Excludes freight & GST
