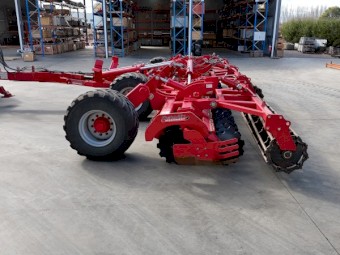

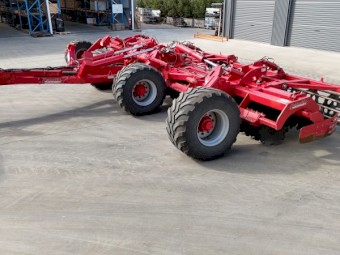

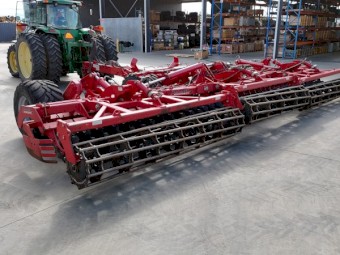

2023 Tatu Speed Disc 72 Plate 9m with Cage Roller USED

Condition: Used

Make: Tatu

13/08/25 - Used Tatu 72 plate – 9 m speed tiller with 600 mm cage roller. Brand new discs fitted and fully workshop tested and ready for work. Forward folding for easy transport. Excellent penetration and level job in various conditions.
Save $65000 off new price!

This heavy duty Multi Disc Tillage Tool features:
* 22" x 6mm Scalloped Disc Blades Front and Rear
* Front Units are on 17 degrees & Rear Units are on 14 degrees
* Tatu Fully Sealed, Maintenance Free, Grease Disc Hub Bearings with Dual Taper Roller
Bearings
* 254mm / 10" spacing between discs on each row (Total of 127mm disc spacing over entire machine)
* 9,150mm / 30ft working width * 10,905kg total or 151kg per disc
* 3,970mm Folded Width * 3,965mm Folded Height * 6,850mm Length
* Heavy Duty Draw bar with Hydraulic Jack Stand and Reinforced pivots
* Cage Roller with 6x Tatu Oil Bath Bearings with Duo Cone Seals
* Side Deflectors fitted standard
* Working Speed of 12-13 kph
* Transport Speed of 25kph when folded
* Working Depth of 50-100mm

It is designed to aggressively fracture the soil and cuts, sizes & incorporates
the residue at a in-field high speed for excellent productivity. It has special disc angles front and rear to incorporate residue whilst leaving an excellent level finish. It is also very low maintenance with no greasing required on any of the disc hub bearings OR rear roller bearings. The frame is built super strong and heavy to ensure excellent penetration. The Disc Arms have 9" of travel so that it can handle rough conditions. Each arm is independently mounted on a rubber torsion suspension system and is on a 10" spacing between discs which allows for excellent trash flow.

Overall, the Tatu Speed Disc is the simple, robust and cost effective tillage tool you have been waiting for.
