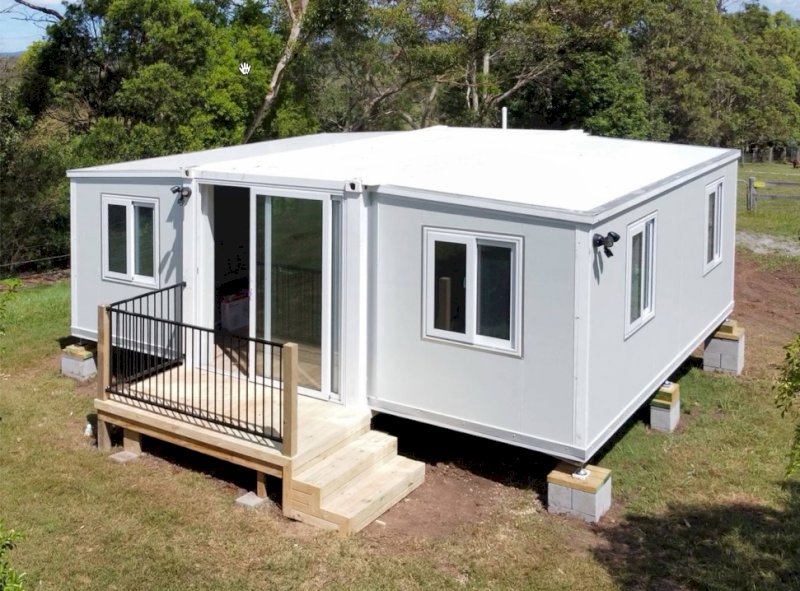

Same Day Granny flat

Condition: Used

Make: Same Day Granny flats

Electrical Compliance
1.5mm power cable for all lights complies to AS 5000.2
2.5mm power cable for all power points complies to AS 500.2
All power cable double insulated to prevent chemical reaction from the polystyrene panels
All power points are double pole to comply with the caravan legislation, AS 3000:2007 and 3001:2008
Electrical Distribution Board installed with 3 circuits complies to AS60898.1
Mains power can be connected to cabin via 15 amp extension lead
2x LED oyster lights supplied complies to AS 60598.2.1

Plumbing
All plumbing connections are on the external bathroom wall
Black water: 100mm connection
Grey water: 50mm connection
Hot/Cold water: ½ inch nipple require to connect hose (poly pipe)
Dedicated hot/cold water and wastewater outlet for washing machine or dishwasher

Structural elements
Structural frame bearer: 150x100x3.75mm RHS
Structural frame post: 150x150x3.0mm SHS
World-class cast-iron container pin holders comply to ISO 1161
Floor joist: 50x30x1.8mm RHS
Floor bearer: 70x50x2.5mm RHS
All steel frame members are galvanised, epoxy coated and painted in gloss white
50mm EPS panels for all walls and ceiling/roof
3mm steel plate over main pod roof

Bathroom
900x900mm shower cubical ~ Rain maker shower head and adjustable shower rail
Vanity with porcelain sink and chrome flip mixers
Full width shower
Marble look PVC wall lining ~ Shaving cabinet with mirror
P trap toilet with soft closing lid
Exhaust fan
Bathroom is fully fitted out ready for use once connected to services
Kitchen
1200mm long kitchen cupboard with overhead storage
Soft closing hinges on all cupboard doors
Double bowl stainless steel sink with flip mixer
20mm Quartz stone bench top
Kitchen is fully installed, ready to use, once connected to services
