**New to PAC** Australian Made Agnflow Centre Pivots
$0.00 + GST ($0.00 Inc. GST)
Details
| Status | : | Farm Inputs |
| Location | : | Ballarat, Central, VIC |
| Category | : | Machinery & Equipment, Irrigation Equipment |
| Listing Date | : | 28/10/2022, 12:43pm |
Description

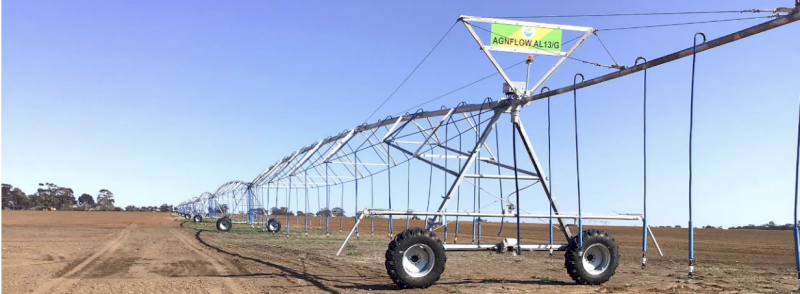

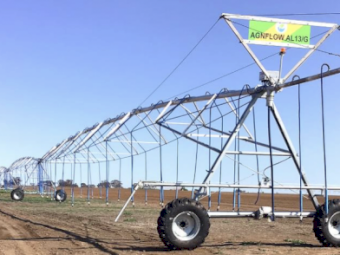

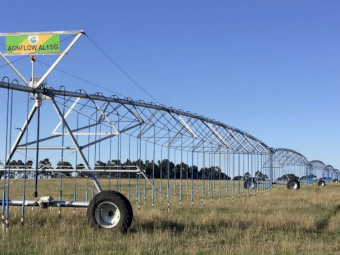

The AgnFlow pivot System AL13G gives way to uncomplicated design and a common sense approach to and utilising as much Australian made material as possible, Agnflow secured their Australian made registration in 2021. Their system is available in 150mm and 203mm versions with span lengths from 36 - 48 metres. Using a proven truss and brace design along with one of the strongest tower support systems made today the AL13-G is a very robust system. We have been supported well by BlueScope steel and their Australian made Aluminium and steel products, for galvanising they use Geelong galvanising.

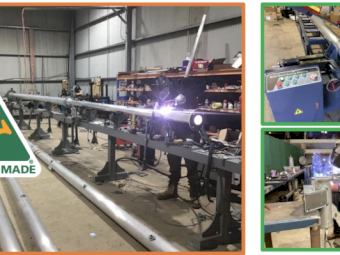

Agnflow are very lucky to have a couple of very well-equipped laser cutting companies at their back door. Many of our small parts are made from either aluminium or stainless steel.
The Centre Point - We offer towable and non-towable versions to suit our 150mm and 203mm spans. The towable option is a basic uncomplicated design using freewheeling hubs with towable plates that enable the wheels to be turned allowing any direction tow of the pad. The AL13-G also comes with a Stainless-Steel option to give the ultimate in corrosion protection.

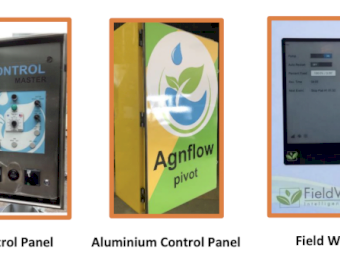

Control and alignment - The AL13-G comes with several control options.
The basic control panel is set in a Stainless-Steel panel using well known componentry, utilising a simple percentage timer and switches make for simple control of system.
Our advanced version is achieved by using the third-party system FIELD WISE (made in the USA) enclosed in our all-new aluminium cabinet. Our computer-controlled panel comes with either 5 inch or 10 inch touch screen and allows for full automation of the system offering the same option as big brands.
The system control alignment is based on very proven design using spring and rod method, the tower boxes are the strongest on the market using a stainless-steel hinged lid system so it will never blow off or corrode.
The Agnflow system does not compromise on the quality of span cable we use matching each system accordingly.
Drive Line:
The preferred supplier of drive train components is UMC which is used on most major brands and using 40/1-50/1 combinations makes it interchangeable with most systems on the market today. Our driver shafts are designed by us and using a heavy universal coupling on a telescoping shaft just like an implement PTO shaft makes for simple use.
Tire options:
The Agnflow AL13-G System is strong enough to take all tire options, but our preferences are as listed
- 14x24 Tractor tread
- 14x24 Turf
- 11x38 Tractor tread
- 13x39 Tractor tread
Sprinkler option:
At Agnflow we pride ourselves on offering the best sprinkler package options and over the past few years we have developed a high understanding of LEPA offerings. Using LEPA (Low Energy Precision Application) we have been able to achieve some massive water and energy savings. We have been able to reduce the wheel tracking completely which is a combination of the lighter hybrid pivot system and our use of LEPA especially around the wheel track area.
Agnflow recommends either Senninger or Komet sprinklers on our systems.
End Guns and Boost pumps:
People often ask are end guns worth it. The answer can be complicated at times and often needs a lot of thought and understand of the customer requirements and limitations are before just adding one for the sake of adding an end gun system.
We tend to sell a lot of boost pumps on smaller systems for customers who are chasing extra irrigated area often on higher value crops on high value farmland. We have developed a simple but robust design to take a ll size boost pumps on our systems and delivering through some thoughtful design points all the way out to the end nozzle.
Wastewater application:
Pictured below, an 8-span coated Aluminium pivot installed for Central Highlands Water (Ballarat) used at one of their recycled farms. Agnflow designed the system around using close spacing bubblers eliminating drift and odor.
Please note that price is on request. A quote will be provided to suit specific requirements.
