$78,115.70 + GST($85,927.27 Inc. GST)
- Condition: New
- Make: Irrimec
$78,115.70 ex GST ex Melbourne warehouse

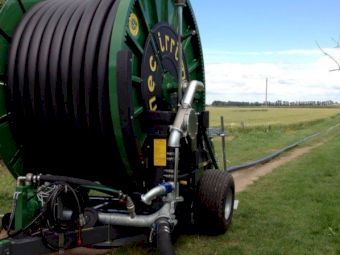

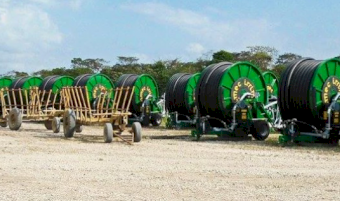

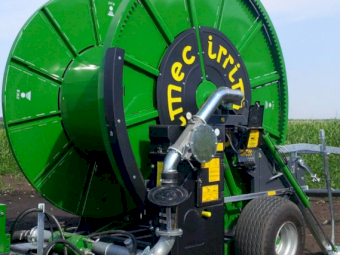

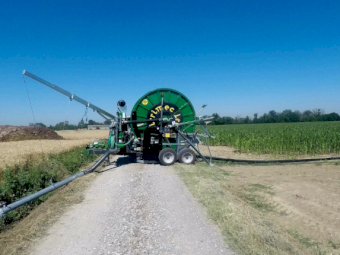

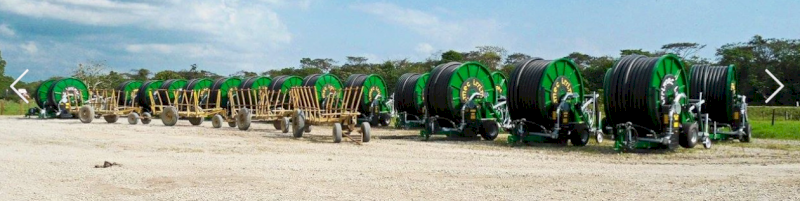

The Master range of irrigators are today the highest reference point for professional irrigation. It has been designed and built to operate on large farms and it is equipped with long hoses of large diameter. The machine in working position sits on the ground on a large diameter galvanised platform which insures a practical, stable and safe operation in all working conditions and at the same time permits 360 degree rotation of the drum.
The unusually high ground clearance allows easy transportation of the irrigator even in the most difficult ground conditions. A central hydraulic control unit for the raising and lowering of the wheels, the stabilizing legs & the trolley and the rotation of the drum allows the machine to be operated by one man alone. The patented Irrimec turbine cast in aluminium and its unique impeller design means that friction losses are kept to an absolute minimum at the same time guaranteeing a large range of wind-in speeds (10-100 M/hr) and flows from 10M3/hr - 130 M3/hr. The gearboxes have built-in PTO wind-in and automatic drum braking when the trolley is being pulled out. The MF model haa a low torque drive on one side of the drum. The large diameter drive rings allow a high degree of efficiency. All models can be fitted with the Irrimec computer control system DOSIDIS/TAKY.
Irrimec is a major Italian hard hose manufacturer with 50 years of manufacturing expertise. Parts are carried in Australia at our Victorian warehouse.
FLOW RATE: 33 to 140m3/h
PRESSURE : 3.9 to 11 bar at hose reel
SPACING: 68 to 116m at 85%
Hydraulic kit for jack, turntable rotation lifting trolley and anchor stabilizer legs, driven by the tractor's hydraulic system.
4 meters rubber supply hose complete with couplers.
Three wheels standard trolley, fixed body with weights.
Standard sprinkler with nozzles.
Agricultural wheels model 11.5-80/15.3 14PR.
Steel double supply pipe.
Pressure gauge in glycerine bath and gauge cock.
Tachometer showing pull-in speed.
Crank for winding in hose.
Operator's manual and spare parts list.
