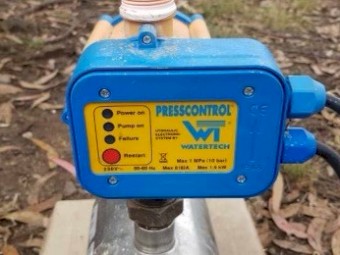

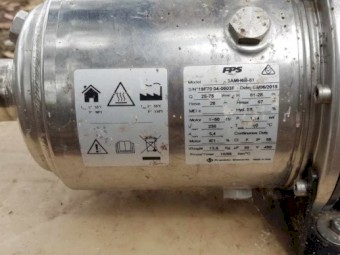

2019 Franklin Electric 450W MH3 Pressure Pump with Mascontrol

Condition: Used

Make: Franklin

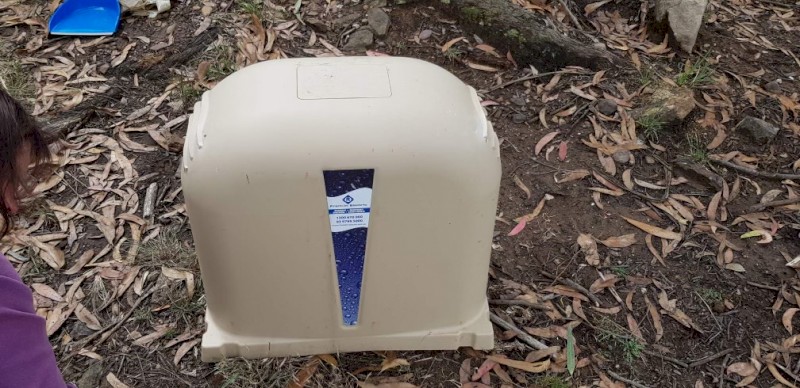

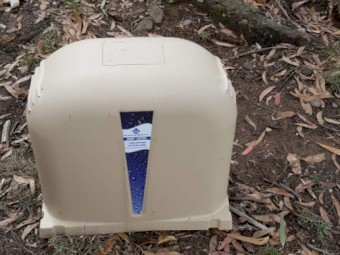

USED AT LEASED PROPERTY FOR HOUSE WATER TANK in great working order. Removed when lease expired - FRANKLIN ELECTRIC 450W MH3 PRESSURE PUMP WITH MASCONTROL
The new MH Series, multi-stage booster pump is designed to meet your pressure boosting needs. The stainless steel construction offers high performance in a wide variety of applications.
Applications
    •    Small domestic and industrial systems / Domestic water supply
    •    Water distribution / Pressure boosting
    •    Irrigation / Gardening / Sprinklers / Rainwater collection
    •    Industrial plants / Wash down unit
    •    Other various installations
Features
    •    Compact close-coupled design, robust and rust resistant / Superior efficiency and performances
    •    Heavy duty oversize motor shaft
    •    Body, impellers and diffuser made of 300 series SS for maximum durability
    •    Easy maintenance
    •    Robust ball bearing fitted into the motor bracket for greater longevity
    •    Single-phase models come with AU/NZ plug
Specifications
    •    Capacities up to 14 m³/h at 50 Hz. Available in 3 flow rates: 3, 5 and 9 m3/h
    •    Heads up to 10 bar, at 50 Hz.
    •    Suction inlet 1.25″ BSP MH 3/5 – 1.5″ BSP MH 9
    •    Discharge outlet 1″ BSP MH 3/5 – 1.25″ BSP MH 9
    •    Maximum working pressure 10 bar
    •    Maximum ambient temperature 40 °C
    •    Liquid t
emperature range -15 °C to 110 °C

    •
Asynchronous, TEFC, Class F insulation, IP55 protection motor

    •
Capacitor inside terminal box

    •
Single-phase motors with built-in thermal relay
