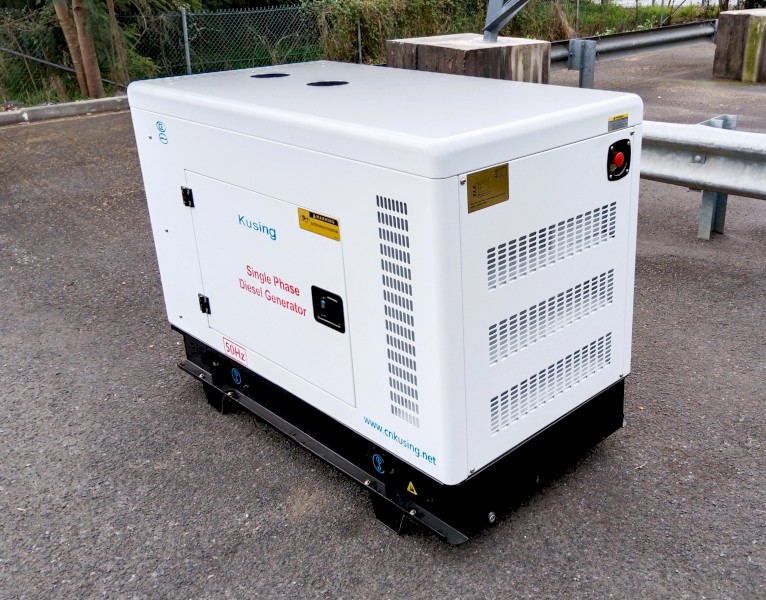

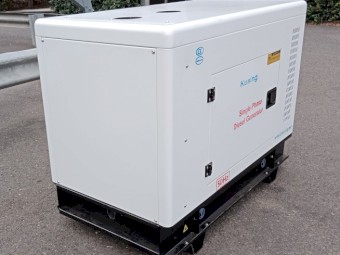

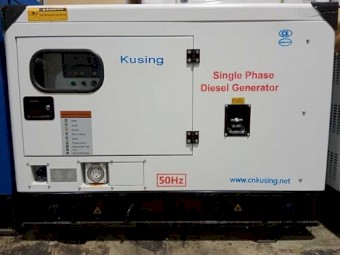

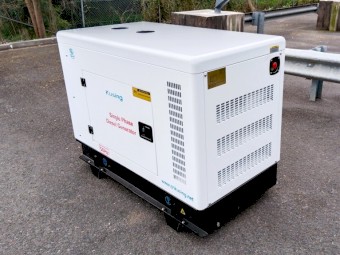

8KVA Silenced Diesel Generator 240V

Condition: New

Wellku Power are the proud winners of the Machines4U Buyers Choice Award in 2023!
Voted best dealer in Australia among 304 retailers for their outstanding customer service in their categories of machinery!

With expert presales advice and after sales service, customers have been satisfied worldwide by purchasing our top-quality products at very competitive prices.
Our self-owned factory currently produces industrial diesel generators on a mammoth scale, starting from 8KVA for domestic use, up to 2750KVA.
Wellku Power focus mostly on manufacturing their generators using premium brand components like Cummins engines, Stamford alternators and a variety of popular brand Controllers. We also sell less expensive machines using our Kusing brand components which give customers great value for money whilst maintaining a reliable source of prime & standby power.

Generator Model K30080
Prime Power 8KVA
Standby Power 8.8KVA
Rated Current 33 Amps
Canopy Silenced
ATS (Auto Transfer Switch) 2 wire start connection installed for ATS (ATS add $500)
Fuel Tank Capacity 60 Litres
Noise Level 70dB @ 7m
Controller Kusing AD6122
Main Breaker Switch 63A
Power Outlets 1 x IP67 63A + male socket
Internal Protection IP23
Dimensions 1500L x 850W x 1050H mm
Weight 560kg

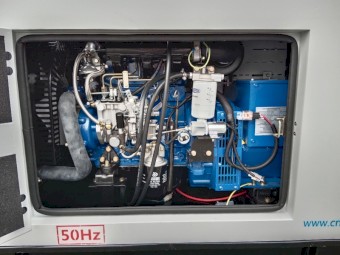

Engine OEM 3 Cylinder Inline Diesel
Bore 85mm
Stroke 95mm
Air Aspiration Natural
RPM 1500
Speed Governor Mechanical
Start System 12V
Fuel Consumption 3.2 L/hr at 100% load
Oil Specification 15W/40
Oil Sump Capacity 4.5 Litres
Coolant Capacity [Engine only] 3.5 Litres
Alternator Make Kusing
Alternator Model S164G88B2 4 Pole Brushless
Voltage 240V
Phase Single phase
Frequency 50Hz @ 1500 RPM
Power Factor 1
Voltage Tolerance +/- 1%
Insulation Class H

Main Features
• 4 pole brushless alternator with zero THD delivering clean stable energy.
• Safe to use on digital electronic equipment.
• Water-cooled diesel engine for round the clock use in extreme conditions.
• User friendly controller with instruction manuals available.
• Some generators are ATS/Auto start connection equipped (check spec sheet).
• Compliant with Australian safety standards.
• Strong weatherproof silent canopy with various lifting locations
• See full spec sheet among photos.

Recommendations
• To maintain a healthy engine, it is recommended to run a minimum load of 40% to prevent cylinder glazing or wet stacking.
• Even loading across all 3 phases will ensure a long life of your alternator.
• This generator is weatherproof however, it is recommended to station the generator under cover if possible.
• Change all fluids after 50 hours and continue with the scheduled service plan as per instruction book.
• If using the generator in a remote location, a distribution board can offer different sized power outlet options (see your electrician for advice).
• Compatible for stationary and transportable use.

Safety Features
• Emergency stop
• Battery Isolator
• Over temperature protection
• Low oil protection
• Low fuel alarm
• RCD protection
• Over current protection
• Battery DC charge fault alarm
• Phase imbalance protection
• Full canopy soundproofing with lockable doors
• Poly baffled fuel tank
• Fire extinguisher (by request)

Warranty
All of our industrial diesel generators come with a standard 12 month/1000 hour warranty. Expert presales advice and after sales service provided by a real person and no frustrating computer answering nonsense.

Shipping
For a shipping price to deliver to your location, please contact us on 07 3375 1130 or email sales1@wellku.com.au
We deliver anywhere in Australia with a few exceptions, also servicing PNG and the South Pacific regions.
For all deliveries, we recommend delivery to your nearest major centre for depot collection.
