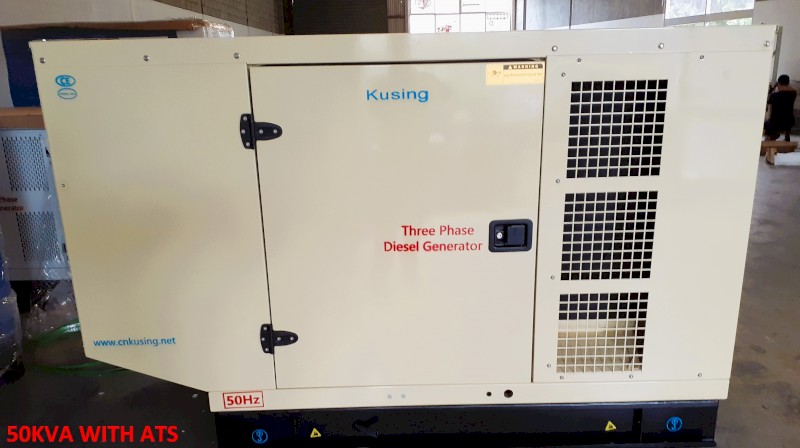

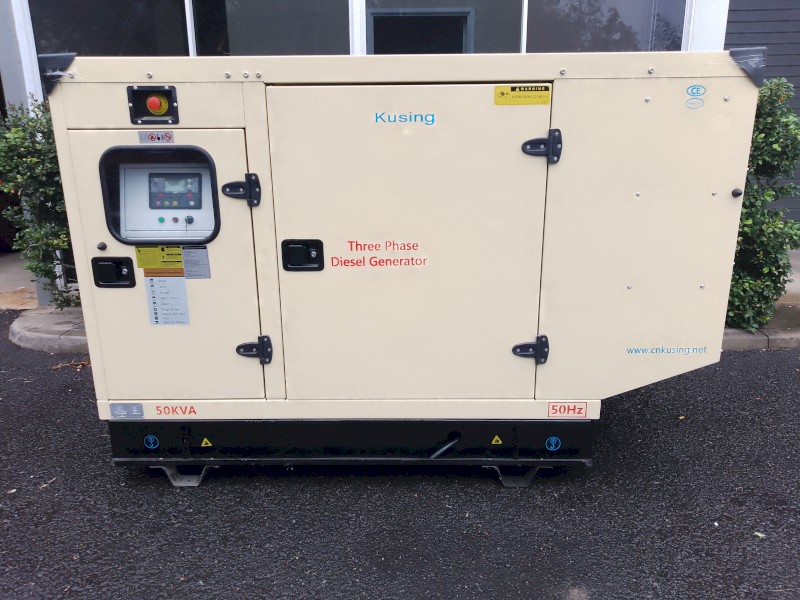

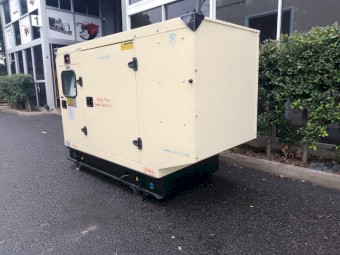

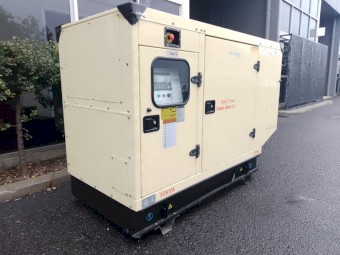

50KVA Cummins / Stamford Silenced Diesel Generator 3 Phase 415V

Condition: New

Make: Kusing

This diesel generator is one of our old stock run out models pre 2022. Fully equipped with the
Cummins engine, Stamford alternator and built in ATS. These models back in their day were
praised by customers for their reliability and robustness.
Our major selling power is the fact that Wellku Power has complete ownership of the Kusing factory where
we have been manufacturing generators for 20 plus years. Our main eye catcher is when our generators start up in the warehouse, there is no bellowing black smoke that you normally expect coming from the exhaust.
All of our engines have been tested on the dyno prior to installation in which they are put
through lengthy running in & testing procedures. The result speaks for itself!

Main Features
4 pole brushless synchronous alternator with zero THD delivering clean stable energy.
Safe to use on digital electronic equipment.
Water-cooled diesel engine for round the clock use in extreme conditions.

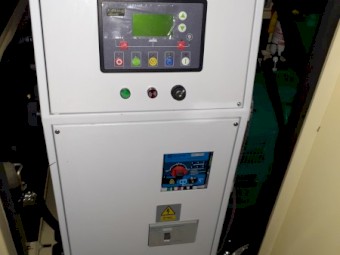

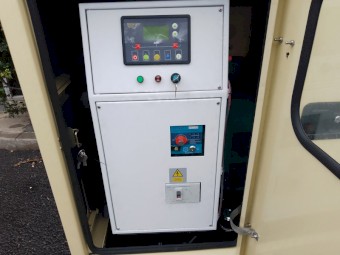

User friendly controller with instruction manuals available.
ATS equipped
Compliant with Australian safety standards.

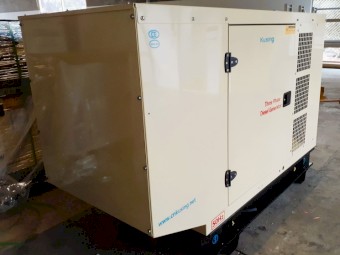

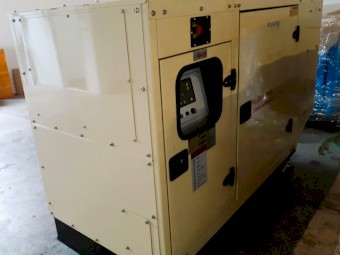

Strong lockable weatherproof canopy with various lifting locations

Safety Features
Emergency stop
Battery Isolator
Over temperature alarm
Low oil alarm
Low fuel alarm
RCD protection
Over current protection
Battery DC charge fault alarm
Phase imbalance protection
Full canopy soundproofing with lockable doors
Baffled poly fuel tank

Generator Model CK30400 (Y)
Prime Power 50KVA
Standby Power 55KVA
Rated Current 72 Amps per phase
Canopy Silenced
ATS (Auto Transfer Switch) Inbuilt
Fuel Tank Capacity Est. 160 Litres
Noise Level 75dB @ 7m
Controller Kusing AD6132
Main Breaker Switch 100A
Internal Protection IP23
Dimensions 2300L x 1050W x 1700mm
Weight 1350kg

Engine Make Cummins
Engine Model 4BTA3.9-G2
Bore 102mm
Stroke 120mm
Air Aspiration Turbo Charged
RPM 1500
Speed Governor Electronic
Start System 24V
Fuel Consumption 10.5 L/hr at 100% load
Oil Specification 15W/40
Oil Sump Capacity 13 Litres
Coolant Capacity 15 Litres
Alternator Make Stamford
Alternator Model UCI224D14 X17C125473
Voltage 415V
Phase 3 phase
Frequency 50Hz @ 1500 RPM
Power Factor 0.8 (lagging)
Voltage Tolerance +/- 1%
Insulation Class H

12 MONTHS / 1000 HOUR WARRANTY

We ship Australia wide, please inquire on a price to your region.
We will make it a possibility as we use a variety of carriers, road & rail services.

This is the last of its kind, be sure not to overlook this money saving option for
a machine with as good quality as compared to the rest of the market. Spare
parts will always be available for this model, the cabinet is the only major difference from our newer designs.
