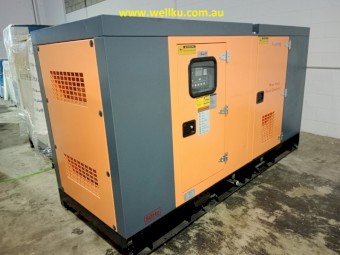

50KVA Cummins Silenced Diesel Generator 3 Phase 415V

Condition: New

Make: Cummins

This is old stock which must clear to make way for our incoming new models. We are a self-owned factory in China, therefore we don't buy from suppliers, we assemble all machines ourselves with CE certification. Our warehouse is based in Brisbane, and we stock many sizes in both single and three phase generators ranging from 8KVA up to 200KVA, all commissioned and ready to go to work.

Generator Model CK30400
Prime Power 50KVA
Standby Power 55KVA
Rated Current 72 Amps per phase
Canopy Silenced
ATS (Auto Transfer Switch) N/A
Fuel Tank Capacity Est. 160 Litres
Noise Level 75dB @ 7m
Controller Deep Sea DSE 7320 MK11
Main Breaker Switch 100A
Internal Protection IP23
Dimensions 2300L x 1050W x 1550mm
Weight 1450kg

Engine Make Cummins
Engine Model 4BTA3.9-G2
Bore 102mm
Stroke 120mm
Air Aspiration Turbo Charged
RPM 1500
Speed Governor Electronic
Start System 24V
Fuel Consumption 10.5 L/hr at 100% load
Oil Specification 15W/40
Oil Sump Capacity 13 Litres
Coolant Capacity 15 Litres
Alternator Make Kusing
Alternator Model BJ-50-4 2119092505
Voltage 415V
Phase 3 phase
Frequency 50Hz @ 1500 RPM
Power Factor 0.8 (lagging)
Voltage Tolerance +/- 1%
Insulation Class H

Main Features
• 4 pole brushless alternator with zero THD delivering clean stable energy.
• Safe to use on digital electronic equipment.
• Water-cooled diesel engine for round the clock use in extreme conditions.
• User friendly controller with instruction manuals available.
• Some generators are ATS/Auto start connection equipped (check spec sheet).
• Compliant with Australian safety standards.
• Strong weatherproof silent canopy with various lifting locations
• See full spec sheet among photos.

Recommendations

• To maintain a healthy engine, it is recommended to run a minimum load of 40% to prevent cylinder glazing or wet stacking.
• Even loading across all 3 phases will ensure a long life of your alternator.
• This generator is weatherproof however, it is recommended to station the generator under cover if possible.
• Change all fluids after 50 hours and continue with the scheduled service plan as per instruction book.
• If using the generator in a remote location, a distribution board can offer different sized power outlet options (see your electrician for advice).
• Compatible for stationary and transportable use.

Safety Features
• Emergency stop
• Battery Isolator
• Over temperature protection
• Low oil protection
• Low fuel alarm
• RCD protection
• Over current protection
• Battery DC charge fault alarm
• Phase imbalance protection
• Full canopy soundproofing with lockable doors
• Poly baffled fuel tank
• Fire extinguisher (by request)


Warranty
All of our industrial diesel generators come with a standard 12 month/1000 hour warranty. Expert presales advice and after sales service provided by a real person and no frustrating computer answering nonsense.

Why you should buy from Wellku Power
Wellku Power Pty Ltd have been manufacturing diesel generators worldwide for over 15 years. Our factory currently produces industrial diesel water-cooled machines from as small as 8KVA up to 3000KVA or more.
Wellku Power focus mostly on manufacturing their generators using premium brand components like Cummins engines, Stamford alternators and a variety of popular brand Controllers. We also sell less expensive machines using our Kusing brand components which give customers great value for money whilst maintaining a reliable source of prime & standby power.
All generator sets have gone through rigorous testing before being released to the marketplace, including 50% load, 75% load, 100% load, 110% load.

If you require a custom build to meet specific requirements, we are your supplier who can provide exactly what you want.

Wellku Power offer attractive wholesale pricing discounts for bulk orders & and discounted prices for repeat customers.

Shipping
For a shipping price to deliver to your location, please inquire.
We deliver anywhere in Australia with a few exceptions, also servicing PNG and the South Pacific regions.
