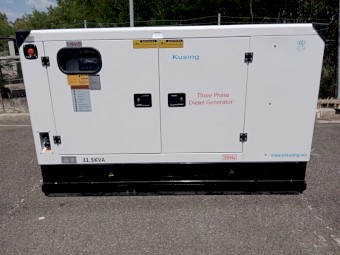

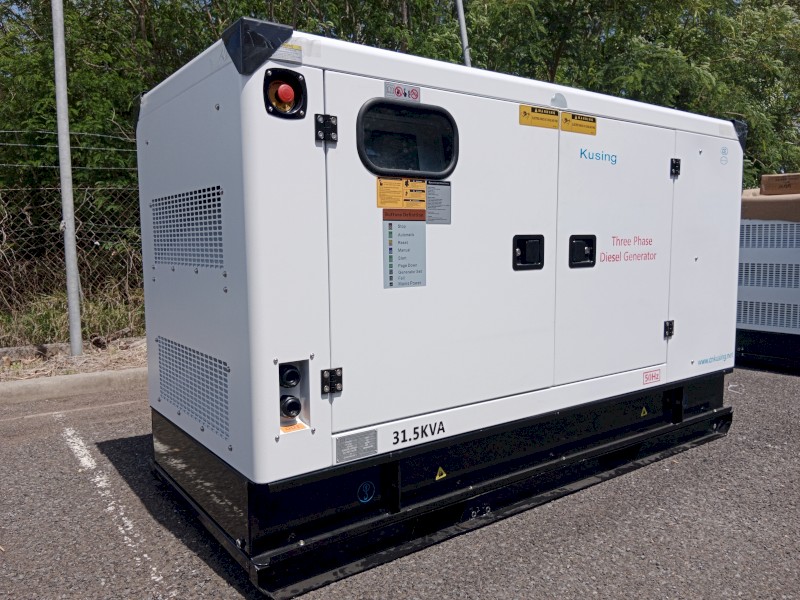

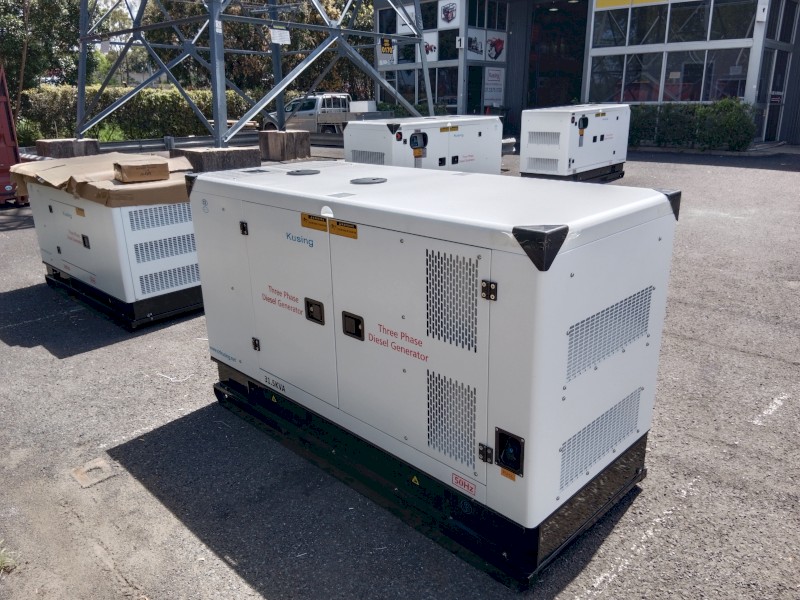

31.5KVA Isuzu Powered Silenced Diesel Generator 415V

Condition: New

Make: Kusing

Main Features

• 4 pole brushless alternator with zero THD delivering clean stable energy.
• Safe to use on digital electronic equipment.
• Water-cooled diesel engine for round the clock use in extreme conditions.
• User friendly controller with instruction manuals available.
• Some generators are ATS/Auto start connection equipped (check spec sheet).
• Compliant with Australian safety standards.
• Strong weatherproof silent canopy with various lifting locations

Recommendations

• To maintain a healthy engine, it is recommended to run a minimum load of 40% to prevent cylinder glazing or wet stacking.
• Even loading across all 3 phases will ensure a long life of your alternator.
• This generator is weatherproof however, it is recommended to station the generator under cover if possible.
• Change all fluids after 50 hours and continue with the scheduled service plan as per instruction book.

Safety Features

• Emergency stop
• Battery Isolator
• Over temperature protection
• Low oil protection
• Low fuel alarm
• RCD protection
• Over current protection
• Battery DC charge fault alarm
• Phase imbalance protection
• Full canopy soundproofing with lockable doors
• Poly baffled fuel tank
• Fire extinguisher (by request)

Specifications:

Generator
Prime Power: 31.5KVA (25KW)
Standby Power: 34.6KVA (27.6KW)
Rated Current: 43 amps per phase
Canopy: Silenced
Fuel Tank Capacity Est: 120 Litres
Noise Level: 70dBA
Controller: Kusing 6122
ATS: 2 Wire Start Connection
Main Contactor Switch: Chint 63A
Dimensions: 2250L x 960W x 135mm
Weight: 995kg

Engine
Isuzu
Air Aspiration: Turbo Charged Intercooled
RPM: 1500
Speed governor: Electronic
Start system: 12V
Fuel consumption: 235 G/KW hours at 100% load
Oil specification: 15W/40

Alternator
Kusing S184G25D10
Voltage: 3 phase 380-415V / single phase 220-240V
Frequency: 50Hz at 1500 RPM
Power Factor: 0.8 (lagging)
Voltage Tolerance: + / - 1%
Insulation Class: H

Warranty

All of our industrial diesel generators come with a standard 12 month/1000 hour warranty.

Shipping

For a shipping price to deliver to your location, please contact us.
We deliver anywhere in Australia with a few exceptions, also servicing PNG and the South Pacific regions.
For all deliveries, we recommend delivery to your nearest major centre for depot collection.
