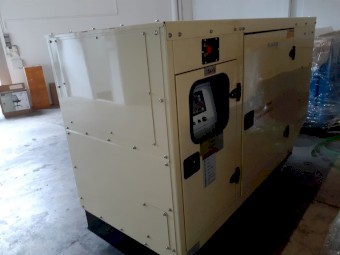

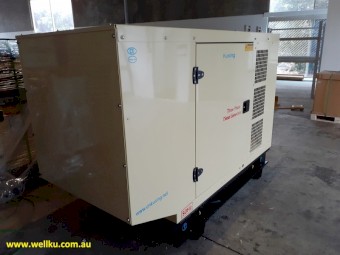

27.5KVA Cummins/Stamford Silenced Diesel Generator 3 Phase 415V

Condition: New

Make: Cummins

This is old stock, brand new reduced to clear.

Generator Model CK30200
Prime Power 27.5KVA
Standby Power 30.2KVA
Rated Current 37.6 Amps per phase
Canopy Silenced
ATS (Auto Transfer Switch) Inbuilt
Fuel Tank Capacity Est. 160 Litres
Noise Level 75dB @ 7m

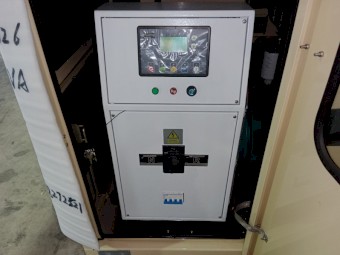

Controller Kusing 6122
Main Breaker Switch 100A
Internal Protection IP23
Dimensions 2300L x 1050W x 1700mm
Weight 1250kg

Engine Make Cummins
Engine Model 4BT3.9-G1
Bore 102mm
Stroke 120mm
Air Aspiration Natural
RPM 1500
Speed Governor Mechanical
Start System 24V
Fuel Consumption 9.3 L/hr at 100% load
Oil Specification 15W/40
Oil Sump Capacity 13 Litres
Coolant Capacity 15 Litres
Alternator Make Stamford
Alternator Model PI144J1 X17C125026
Voltage 415V
Phase 3 phase
Frequency 50Hz @ 1500 RPM
Power Factor 0.8 (lagging)
Voltage Tolerance +/- 1%
Insulation Class H

Main Features
• 4 pole brushless alternator with zero THD delivering clean stable energy.
• Safe to use on digital electronic equipment.
• Water-cooled diesel engine for round the clock use in extreme conditions.
• User friendly controller with instruction manuals available.
• Some generators are ATS/Auto start connection equipped (check spec sheet).
• Compliant with Australian safety standards.
• Strong weatherproof silent canopy with various lifting locations
• See full spec sheets for both models among photos.

Recommendations
• To maintain a healthy engine, it is recommended to run a minimum load of 40% to prevent cylinder glazing or wet stacking.
• Even loading across all 3 phases will ensure a long life of your alternator.
• This generator is weatherproof however, it is recommended to station the generator under cover if possible.
• Change all fluids after 50 hours and continue with the scheduled service plan as per instruction book.
• If using the generator in a remote location, a distribution board can offer different sized power outlet options (see your electrician for advice).
• Compatible for stationary and transportable use.

Safety Features
• Emergency stop
• Battery Isolator
• Over temperature protection
• Low oil protection
• Low fuel alarm
• RCD protection
• Over current protection
• Battery DC charge fault alarm
• Phase imbalance protection
• Full canopy soundproofing with lockable doors
• Poly baffled fuel tank
• Fire extinguisher (by request)
