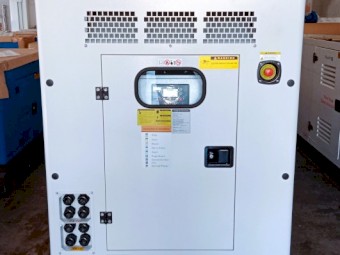

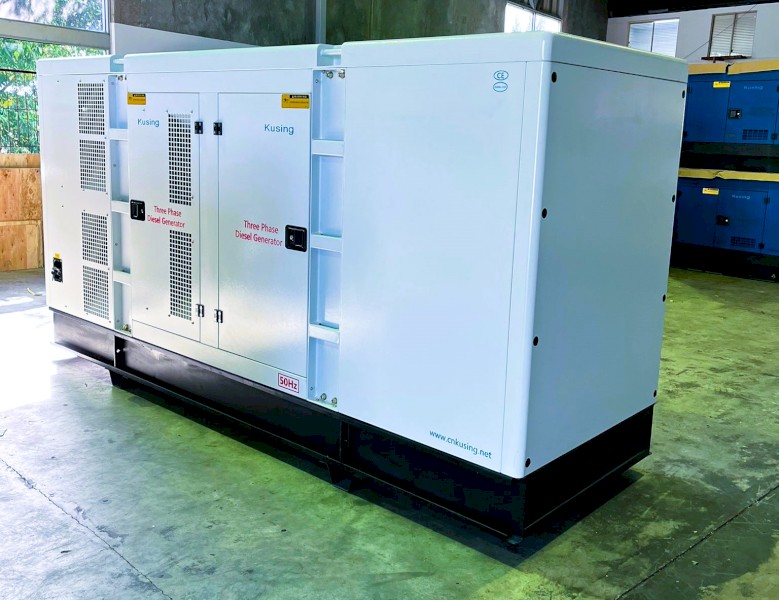

200KVA Cummins Silenced Diesel Generator 3 Phase 415V

Condition: Used

With expert presales advice and after sales service, customers have been satisfied worldwide by purchasing our top-quality products at very competitive prices.
Our self-owned factory currently produces industrial diesel generators on a mammoth scale, starting from 8KVA for domestic use, up to 2750KVA.
Wellku Power focus mostly on manufacturing their generators using premium brand components like Cummins engines, Stamford alternators and a variety of popular brand Controllers. We also sell less expensive machines using our Kusing brand components which give customers great value for money whilst maintaining a reliable source of prime & standby power.

Main Features
• 4 pole brushless alternator with zero THD delivering clean stable energy.
• Safe to use on digital electronic equipment.
• Water-cooled diesel engine for round the clock use in extreme conditions.
• User friendly controller with instruction manuals available.
• Some generators are ATS/Auto start connection equipped (check spec sheet).
• Compliant with Australian safety standards.
• Strong weatherproof silent canopy with various lifting locations
• See full spec sheet among photos.

Safety Features
• Emergency stop
• Battery Isolator
• Over temperature protection
• Low oil protection
• Low fuel alarm
• RCD protection
• Over current protection
• Battery DC charge fault alarm
• Phase imbalance protection
• Full canopy soundproofing with lockable doors
• Poly baffled fuel tank
• Fire extinguisher (by request)

Warranty
All of our industrial diesel generators come with a standard 12 month/1000 hour warranty. Expert presales advice and after sales service provided by a real person and no frustrating computer answering nonsense.

Shipping
For a shipping price to deliver to your location, please contact us.
We deliver anywhere in Australia with a few exceptions, also servicing PNG and the South Pacific regions.
For all deliveries, we recommend delivery to your nearest major centre for depot collection.

Generator Model CK31600
Prime Power 200KVA
Standby Power 220KVA
Rated Current 288 Amps per phase
Canopy Silenced
ATS (Auto Transfer Switch) 2 wire quick connection
Fuel Tank Capacity Est. 300 Litres
Noise Level 75dB @ 7m

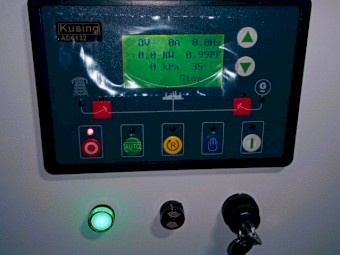

Controller Kusing AD6132
Main Breaker Switch 400A
Internal Protection IP23
Dimensions 5600L x 1200W x 1900H mm
Weight 3500kg

Engine Make Cummins
Engine Model 6CTA8.3-G1
Bore 102mm
Stroke 120mm
Air Aspiration Turbo Charged
RPM 1500
Speed Governor Electronic
Start System 24V Batteries included
Fuel Consumption 37 L/hr at 100% load
Oil Specification 15W/40
Oil Sump Capacity 30 Litres
Coolant Capacity 30 Litres
Alternator Make Marathon
Alternator Model MP-160-4 4 Pole Synchronous + AVR
Voltage 415V
Phase 3 phase
Frequency 50Hz @ 1500 RPM
Power Factor 0.8 (lagging)
Voltage Tolerance +/- 1%
Insulation Class H
