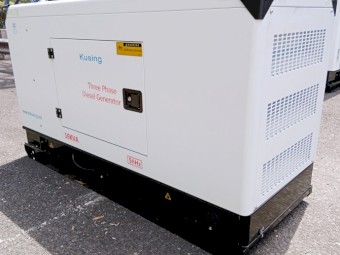

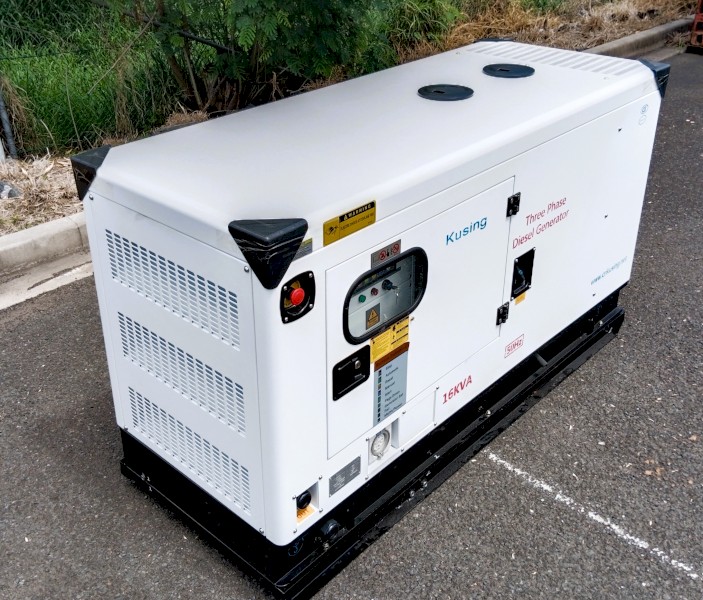

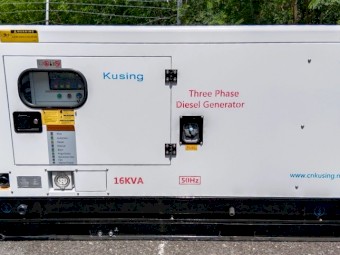

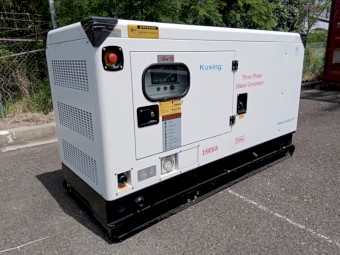

16KVA Silenced 3 Phase Diesel Generator 415V

Condition: New

Make: Kusing

Main Features

• 4 pole brushless alternator with zero THD delivering clean stable energy.
• Safe to use on digital electronic equipment.
• Water-cooled diesel engine for round the clock use in extreme conditions.
• User friendly controller with instruction manuals available.
• Some generators are ATS/Auto start connection equipped (check specs).
• Compliant with Australian safety standards.
• Strong weatherproof silent canopy with various lifting locations

Recommendations

• To maintain a healthy engine, it is recommended to run a minimum load of 40% to prevent cylinder glazing or wet stacking.
• Even loading across all 3 phases will ensure a long life of your alternator.
• This generator is weatherproof however, it is recommended to station the generator under cover if possible.
• Change all fluids after 50 hours and continue with the scheduled service plan as per instruction book.
• If using the generator in a remote location, a distribution board can offer different sized power outlet options (see your electrician for advice).

Safety Features

• Emergency stop
• Battery Isolator
• Over temperature protection
• Low oil protection
• Low fuel alarm
• RCD protection
• Over current protection
• Battery DC charge fault alarm
• Phase imbalance protection
• Full canopy soundproofing with lockable doors
• Poly baffled fuel tank
• Fire extinguisher (by request)

Specifications:
Generator Model K30120
Prime Power 16KVA
Standby Power 17.6KVA
Rated Current 22 Amps per phase
Canopy Silenced
ATS (Auto Transfer Switch) 2 wire start connection installed for ATS (ATS add $350)
Fuel Tank Capacity 80 Litres
Noise Level 75dB 7m
Controller Kusing AD6122
Main Breaker Switch RCD 63A
Power Outlets 1 x 32A 415V, 2 x 15A 240V
Internal Protection IP22
Dimensions 1950L x 780W x 1050H mm
Weight 680kg

Engine Make Yang Dong
Engine Model YND485D
Bore 85mm
Stroke 95mm
Air Aspiration Natural
RPM 1500
Speed Governor Mechanical
Start System 12V
Fuel Consumption 4.7 L/hr at 100% load
Oil Specification 15W/40
Oil Sump Capacity 6.5 Litres
Coolant Capacity 9 Litres
Alternator Make Kusing
Alternator Model KAL164D2 KS039
Voltage 415V
Phase 3 phase
Frequency 50Hz 1500 RPM
Power Factor 0.8 (lagging)
Voltage Tolerance +/- 0.5% - 1%
Insulation Class H

Warranty

All of our industrial diesel generators come with a standard 12 month/1000 hour warranty.
