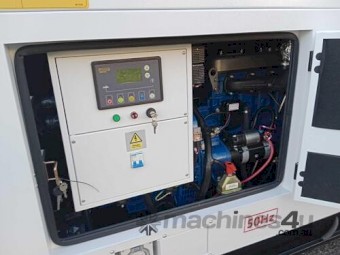

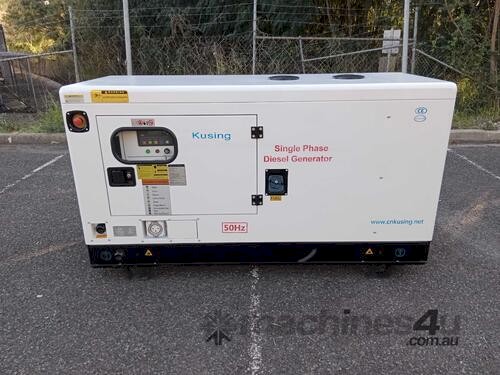

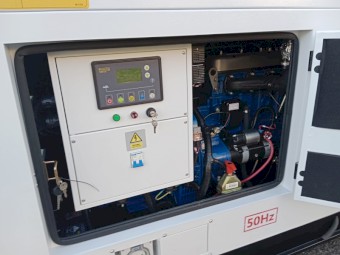

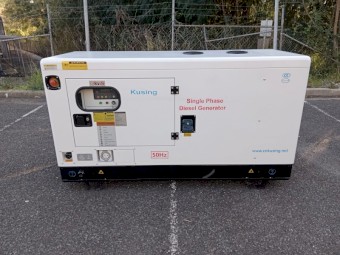

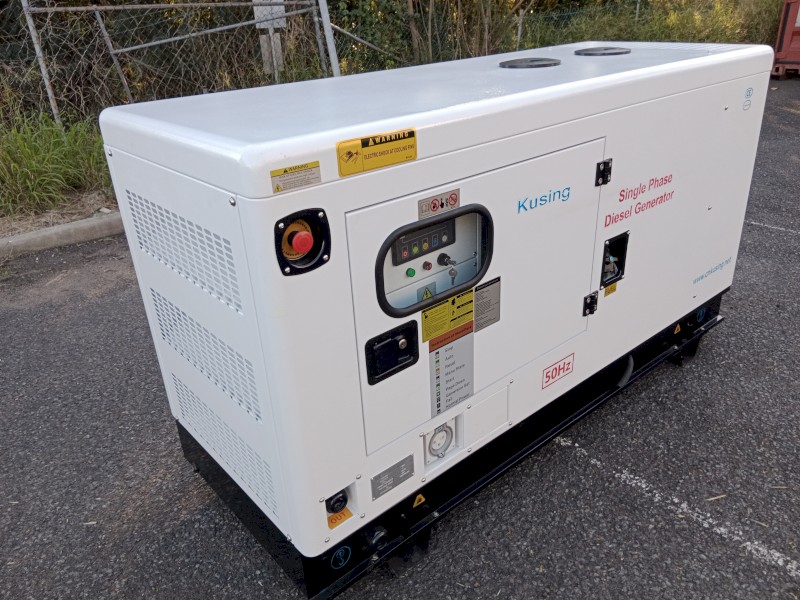

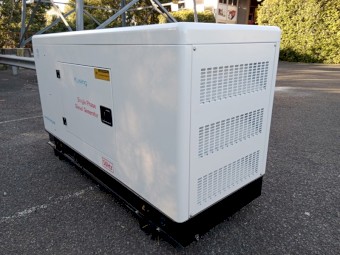

12.8KVA Silenced Diesel Generator 240V

Condition: New

Main Features

• 2 pole brushless alternator with zero THD delivering clean stable energy.
• Safe to use on digital electronic equipment.
• Water-cooled diesel engine for round the clock use in extreme conditions.
• User friendly controller with instruction manuals available.
• Some generators are ATS/Auto start connection equipped (check spec sheet).
• Compliant with Australian safety standards.
• Strong weatherproof silent canopy with various lifting locations

Recommendations

• To maintain a healthy engine, it is recommended to run a minimum load of 40% to prevent cylinder glazing or wet stacking.
• This generator is weatherproof however, it is recommended to station the generator under cover if possible.
• Change all fluids after 50 hours and continue with the scheduled service plan as per instruction book.

Safety Features

• Emergency stop
• Battery Isolator
• Over temperature protection
• Low oil protection
• Low fuel alarm
• RCD protection
• Over current protection
• Battery DC charge fault alarm
• Phase imbalance protection
• Full canopy soundproofing with lockable doors
• Poly baffled fuel tank
• Fire extinguisher (by request)

Specifications

Generator Model K30120
Prime Power 12.8KVA
Standby Power 14KVA
Rated Current 50 Amps
Canopy Silenced
ATS (Auto Transfer Switch) 2 wire start connection installed for ATS (ATS add $350)
Fuel Tank Capacity 80 Litres
Noise Level 75dB 7m
Controller Kusing AD6122
Main Breaker Switch 63A

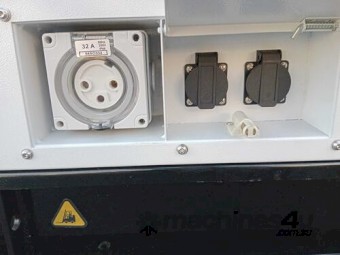

Power Outlets 1 x IP67 32A & 2 x 15A
Internal Protection IP23
Dimensions 1950L x 780W x 1050H mm
Weight 650kg

Engine Make Yang Dong
Engine Model YND485
Bore 85mm
Stroke 95mm
Air Aspiration Natural
RPM 1500
Speed Governor Mechanical
Start System 12V
Fuel Consumption 4.2 L/hr at 100% load
Oil Specification 15W/40
Oil Sump Capacity 6 Litres
Coolant Capacity 9 Litres
Alternator Make Kusing
Alternator Model S164G128C4 KS025
Voltage 240V
Phase Single phase
Frequency 50Hz 1500 RPM
Power Factor 1
Voltage Tolerance +/- 1%
Insulation Class H

Warranty

All of our industrial diesel generators come with a standard 12 month/1000 hour warranty.
