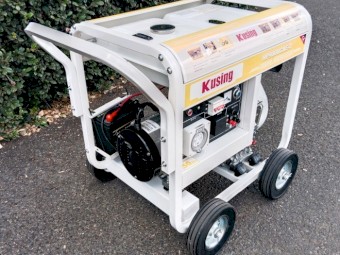

10KVA Diesel Generator 415V 3Phase

Condition: New

With expert presales advice and after sales service, customers have been satisfied worldwide by purchasing our top-quality products at very competitive prices.

Our self-owned factory currently produces industrial diesel generators on a mammoth scale, starting from 8KVA for domestic use, up to 2750KVA.

Wellku Power focus mostly on manufacturing their generators using premium brand components like Cummins engines, Stamford alternators and a variety of popular brand Controllers. We also sell less expensive machines using our Kusing brand components which give customers great value for money whilst maintaining a reliable source of prime & standby power.

Generator Model HP9000CXE-3
Prime Power 10KVA / 8KW
Standby Power 10.6KVA / 8.5KW
Rated Current 13.9 Amps/Phase
Canopy Open
2 Wire Auto Start No
Fuel Tank Capacity 25 Litres
Noise Level 80dB @ 7m
Controller N/A (Volt meter)
Main Circuit Breaker 16A
Dimensions 800 x 670 x 780mm (wheels inc.)
Shipping Dimensions 820 × 610 × 830mm
Weight 142kg
Shipping Weight 162kg
Engine Make Kusing
Engine Model WM1100FE
Displacement 668cc
Maximum Horsepower 18
RPM 3000
Speed Governor Mechanical
Start System 12V
Fuel Consumption 1.2 L/hr
Oil Specification 15W/40
Oil Sump Capacity 2 Litres
Fuel Type Diesel
Low Oil Alarm Yes
Pole No. 2
Voltage Regulator AVR
Voltage & Outlets 415V / 240V – 20A 3Ph / 15A Single Ph
Phase 3 phase
Frequency 50Hz @ 3000 RPM
Power Factor 0.8 Lagging
DC Current 8.3A
Insulation Class F

Safety Features

Emergency stop
Electric start
Low oil alert light
RCD protection
AVR (Voltage Regulator)
Over current protection
IP66 Rated 3 phase outlet
Earth stake connection

Recommendations

Change engine oil every 50 hours
Change fuel filter every 100 hours
Keep the genset out of the rain if unable to maintain undercover
Be aware of how much load you are drawing to avoid running at 85-100% load
Do not run for more than 6 hours at a time
Allow cool down periods until oil viscosity is regained (around 2 hours)

Warranty

All of our air cooled diesel generators come with a standard 12 month/500 hour warranty. Expert presales advice and after sales service provided by a real person and no frustrating computer answering nonsense.
