VICTRON OFF GRID SYSTEM | AUSTRALIAN GENZ LITHIUM BATTERIES

This off grid system is perfect for low power dwellings like weekenders, tiny houses, smaller houseboats & remote sheds where you are looking for a premium Lithium battery solution. Also powered by super reliable Victron gear when you couple that with the incredible GenZ batteries rated to 10,000 cycles @ an 80% discharge that’s over 20 years you’ll get out of your batteries. The beauty about lithium batteries is that you can grow your battery bank as your budget or needs require it. Size your own kit according to your needs and of course we are here to help if you require assistance working out exactly what will suit your requirements.

Here at Commodore we specialize in off grid what that means is that when you purchase a system from us you can have confidence that it will do exactly what you want it to do, that it is going to be supremely reliable as we would only sell what we would install in our own house and best of all we are here to help you every step of the way after you’ve purchased your system. You will not get a better price on an off grid system full stop. We are one of the biggest off grid distributors in Australia we offer you the best price the first time.

GENZ batteries (Mining Spec Australian Made Lithium)

Australian designed and engineered, the GENZ Lithium batteries are very impressive in all aspects featuring a 10,000 cycle life rating, a much smaller footprint and excellent low temperature performance. A battery bank can now fit in almost one third the footprint of previous off grid lithium options, with aesthetics a world forward from a lead-acid type battery bank.

Genz has been used in industrial applications for a long time with a strong mining alliance, they have a fantastic in-field record for reliability and performance in harsh environments. Genz are also used in the Australian services.

Fully expandable – grow your battery bank as your needs demand at any time
More usable energy – up to 100% can be used without adversely compromising battery life
More Charge / Recharge cycles – 10,000 cycles for off grid solar,( 10,000 cycles rated at 80% DOD, battery can be fully discharged to 100% )
Excellent constant high current Charge / Discharge performance
Greater charge efficiency – up to 98% ! this means far less energy wasted during charging and more power available to you in less time
More energy stored in less space – 30kWh can be stored in 1200H*550W*700D MM
Standardised 19″ rack mounting system – compatible to mount in server racks if desired
Internal intelligent management means each battery module can operate to its potential, rather than performing only as well as the weakest battery
Smarter internal management means no need for specific battery-inverter communications to keep the battery ‘awake’, liberating the battery for use with a wider range of inverter & charger hardware
Integrated re-settable circuit breaker in each battery module for added safety and simpler system cabling with less external fusing
Battery modules are made with high quality & tolerance matched cylindrical LFP cells for optimal performance
Based on the rated performance and upfront cost, the Genz Batteries deliver an exceptional cost of ownership. The 10,000 cycle based warranty (24,000kWh per battery module in 10 years) dictates a max of around 13.5 cents per kWh, and typical real word usage scenarios can far exceed the guaranteed minimums.

Peace of mind is a very important facet of living self sufficiently or off grid. The Victron hardware has time proven reliability & is covered by an outstanding 5 year replacement or repair warranty. The Genz Lithium batteries system features an outstanding 10 year or 10,000 cycle warranty! They are constructed of the safest and best performing lithium battery technology for solar off grid power systems – Lithium Ferrous Phosphate (otherwise known as LiFePO4 or LFP).

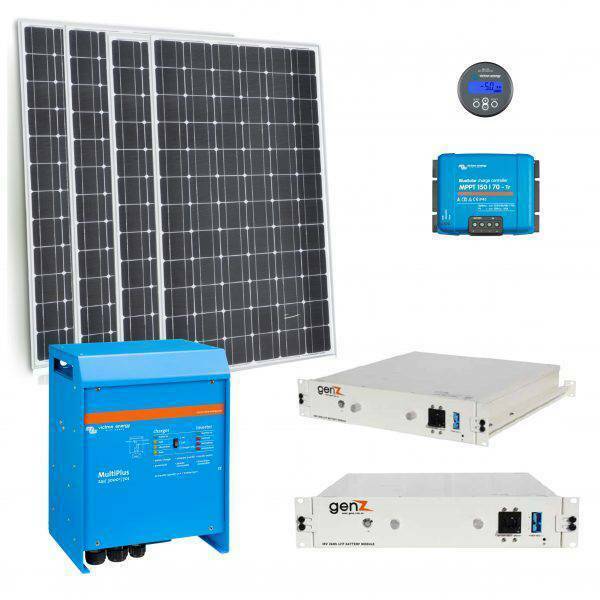

Package includes:

Victron MultiPlus II either 3kVa or 5kVA Inverter Charger 48V
Australian GENZ lithium Batteries 3kWh 48V module
Either 6, 9 or 12 x 270w A grade 24V Solar PV Panels.
Optional battery cabinet is an optional extra at $890
Optional Victron Colour Control advanced system monitor, gives full history and allows for remote access and control of your system $790
If no colour control is selected the system will be supplied with the basic monitoring such as MPPT screen and BMV battery monitor
Victron MPPT SmartSolar charge controller to suit selected solar array
Victron MPPT Control unit (to view/ control solar charging state)
Solar Panel racking to suit Tin roof (Tile & Tilt upgrades available)
Cables, fuses, isolators, etc to suit the system
20m cable runs to the solar array and 2m cable distance to the battery bank as standard
Safety Sticker Kit
Connection guides
The system can be expanded at any time in the following ways

Over 100kWh battery storage – using 3kWh modules & cabinets as required (add an extra 3kWh battery from $3250 inc gst.
Up to 6x Inverter Chargers for up to 18kVA rated output power – set single phase or 3 phase
Within sensibility, basically an unlimited amount of solar power can be installed, adding more MPPT controllers as required.
Create a Grid-Hybrid system, where your Solar energy is used & stored as first priority**. Power will be supplied primarily from the solar panels & battery bank. If required, the grid can help power loads through the inverter automatically. This design principle uses your solar & stored energy first before using the mains grid power. If your batteries are full, and there is more solar power than your loads need, the extra power can be exported back to the grid for feed-in tariffs.

** color control GX system required to do this- add $790 inc gst

System Performance

Solar array – depending on location, the annual daily average in Australia is 4 to 5 hours equivalent of full power from the array per day (where a 1kW array would give between 4 – 5kWh per day if demanded) with more in summer and less in winter. A large solar PV array design principle reduces the amount of time the batteries will be low on charge, which maximises their life expectancy & provides you with far more reliable power. Average daily input figures:

6x 270w = 7.3kWh | 9x 270w = 10.94kWh | 12x 270w = 14.6kWh per day

Warranty Information

All Victron components have a 5 year full warranty
Genz Lithium batteries have a 10 year or 10,000 Cycle warranty
Solar Panels feature a 25 year output warranty to 80 percent rated power
All other items come with a minimum 12 month warranty
