BENATNI RECOVERY PLUS 9 METER 75 TONNE SNATCH STRAP/AXLE STRAPS/BRIDLE COMBO (NO SHACKLES)
$1,865.00 + GST($2,051.50 Inc. GST)
- Condition: New
1 x 9METER 75TONNE SNATCH STRAP/AXLE STRAPS/BRIDLE COMBO (NO SHACKLES)
SHIPPING NOT INCLUDED - You can have your freight company collect or i can give quote via Northline

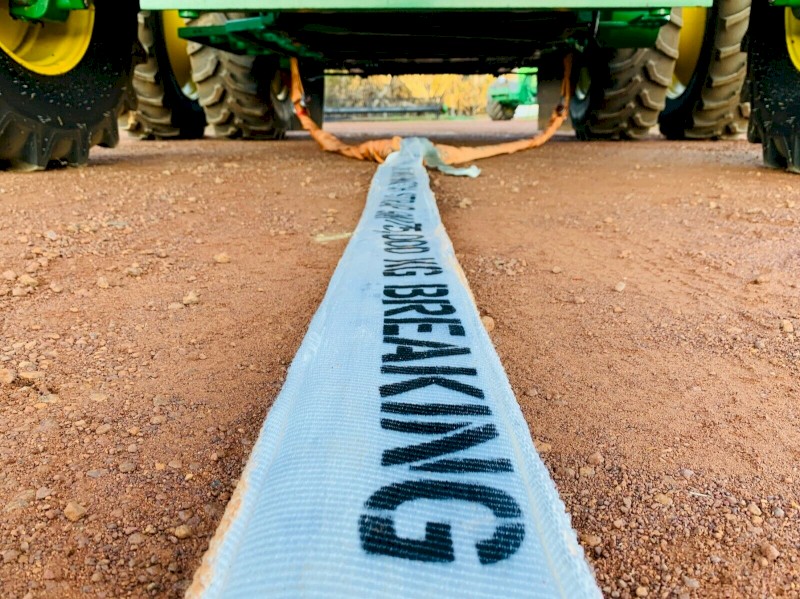

1 x SNATCH STRAP with Anti-Recoil 9 Meter 75000kg (75Tonne)
1 x BRIDLE 75000kg (75Tonne)

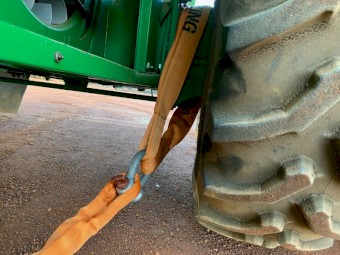

2 x AXLE STRAPS 75000kg (75Tonne)
Are you a little stuck?
Australian made to Australian safety standards for Australian conditions!
Snatch Straps are the most cost effective method of recovering heavy machinery.
75000kg (75Tonne) Snatch Straps will suit SP Harvester and SP Boomsprays, Tractor and trailed boomsprays, smaller 4WD and air-seeder combinations, single trailer truck units.
Up to approximately 300-350HP
> RATED AT 75000KG (75TONNE) MINIMUM BREAKING STRENGTH
> 9 METERS IN LENGTH
> INCLUDES ANTI-RECOIL SAFETY STRAPS
> AUSTRALIAN MADE
> ENGINEERED TO AUSTRALIAN SAFETY STANDARDS
> MANUFACTURED IN WESTERN AUSTRALIA
> MADE FROM AUSTRALIAN MADE WEBBING
How to choose the correct sized Snatch Strap
As stated in the Australian "Consumer Goods (Motor Vehicle Recovery Straps) Safety Standard 2017"
Section 8 (iv)
"A recommendation that the minimum breaking strength of the strap should be between 2 and 3 times the gross vehicle mass (GVM) of any vehicle it is used with;"
Example: If your Vehicle GVM is 25000kgs (25 Tonne) fully loaded, you require to use a 50000kg (50Tonne) or 75000kg (75Tonne) Snatch strap.
How to choose the correct sized Shackle
Please note that recent legislation changes have increased the recommended size on all shackles being used on straps and bridles.
This combo require 1 shackle for the snatch strap, and 2 shackles for the axle straps.
The correct shackle to be used with the 75000kg (75Tonne) Snatch Strap is a 25000kg (25Tonne) Shackle and 4750kg shackle for the anti-recoil strap.
The correct shackle to be used with the axle straps is 2 x 12000kg (12Tonne) Shackles
All Benatni Recovery Plus Snatch Straps include the anti-recoil safety strap.
The ANTI-RECOIL SAFETY STRAP are a superb product.
The anti-recoil strap eliminates the recoil of the of the snatch strap as an additional safety precaution.
Anchor points on vehicles are not always adequate to withstand the tonnage placed on them.
THIS IS AN AUSTRALIAN MADE PRODUCT MADE TO AUSTRALIAN SAFETY STANDARDS AND SHOULD NOT BE COMPARED TO CHINESE IMPORTED PRODUCTS.
CAUTION: If the webbing strap is cut or damaged DO NOT USE, take it to your local stockist for assessment repair.
All instructions are required to be perfectly followed, anti-recoil straps to be secured whenever supplied and common sense does need to be employed at all times.
All snatch straps can be customised to required lengths 9m/12m/15m/20m etc and range in breaking loads 26000kg/50000kg/60000kg/75000kg/100000kg/150000kg/200000kg
