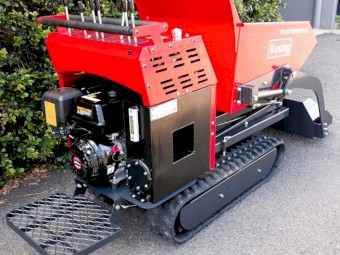

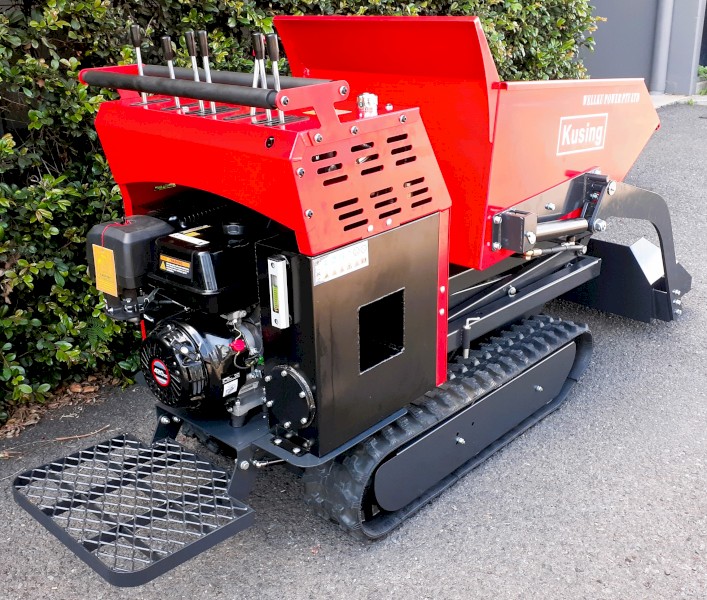

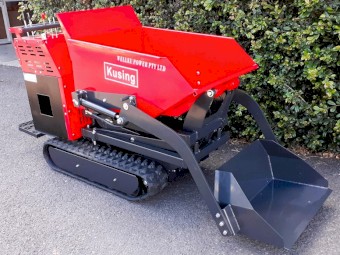

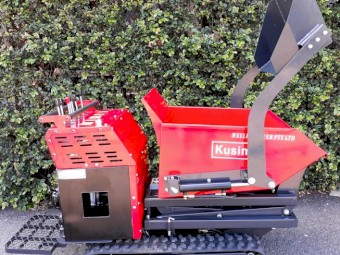

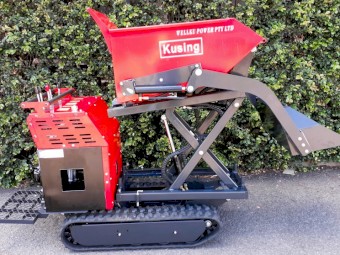

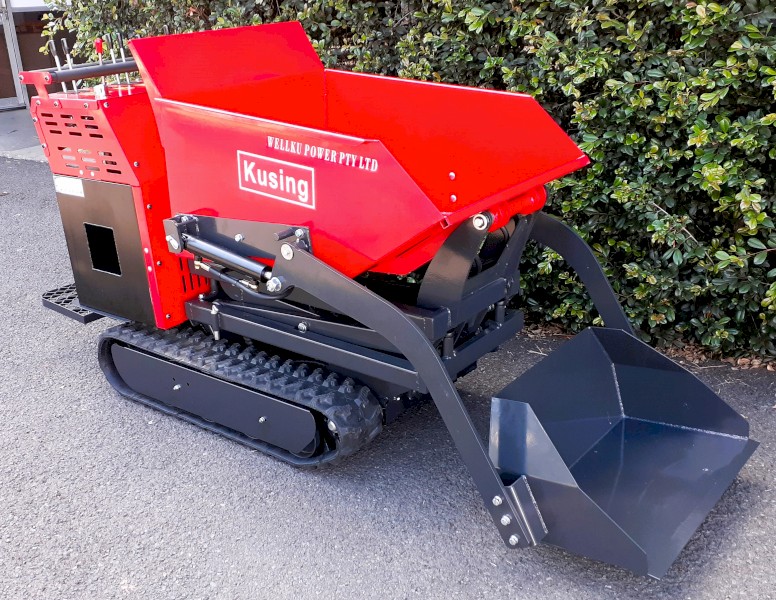

Tracked Hydraulic Mini Loader 500kg Electric Start

Condition: New

The Kusing Mini Loader is an essential piece of machinery for removing and transporting garden waste & debris, landscaping materials, and much more. Perfect for moving over uneven, boggy wet surfaces where conventional machines can’t go. Now available with electric start by popular demand.

• Variable speed forward & reverse
• Centrifugal clutch steering.
• Hydraulic tipping & digging operation
• Heavy duty bin
• Tracks made from heavy duty rubber for safe use on paved surfaces.
• Ground clearance 62mm
• Turning distance 82cm
• Maximum working pressure 200BAR
• Electric Start

Model No. K0160
Engine Make Lancin OHV
Engine Displacement 420cc / 15HP
Engine Type Single Cylinder 4 Stroke Air Cooled
Fuel Tank Capacity 10 Litres
Maximum Carry Weight 500kg
Bin Volume & Scoop Dimensions Bin 230L - Scoop (665W x 315H x 380D)
30% Gradient Max. Load 375kg
Maximum Lift Height 1.2 metres
Maximum Speed 3-4km/hour
Start System Electric
Fuel Consumption Est. 1.5 L/hr
Engine Oil Specification 10W/40
Engine Oil Capacity 2 Litres
Hydraulic Oil Specification ISO 46
Hydraulic Oil Capacity 33 Litres
Fuel Specification ULP 91
Noise Level 93DBA
Track Width 180mm
Bin Dimensions 1000L x 700W x 450H mm
Dimensions (footrest in up position) 2330L x 930W x 1200H mm
Shipping Dimensions 1820L x 950W x 1350H mm
Weight 430kg
Shipping Weight 450kg

12 months parts replacement warranty
All spare parts available in stock Darra

See our other listings offering a wide range of mini dumpers & diesel generators.
We can ship to almost anywhere in Australia including PNG & south pacific regions.
